IMB08-02BDSVU5K Inductive proximity sensors

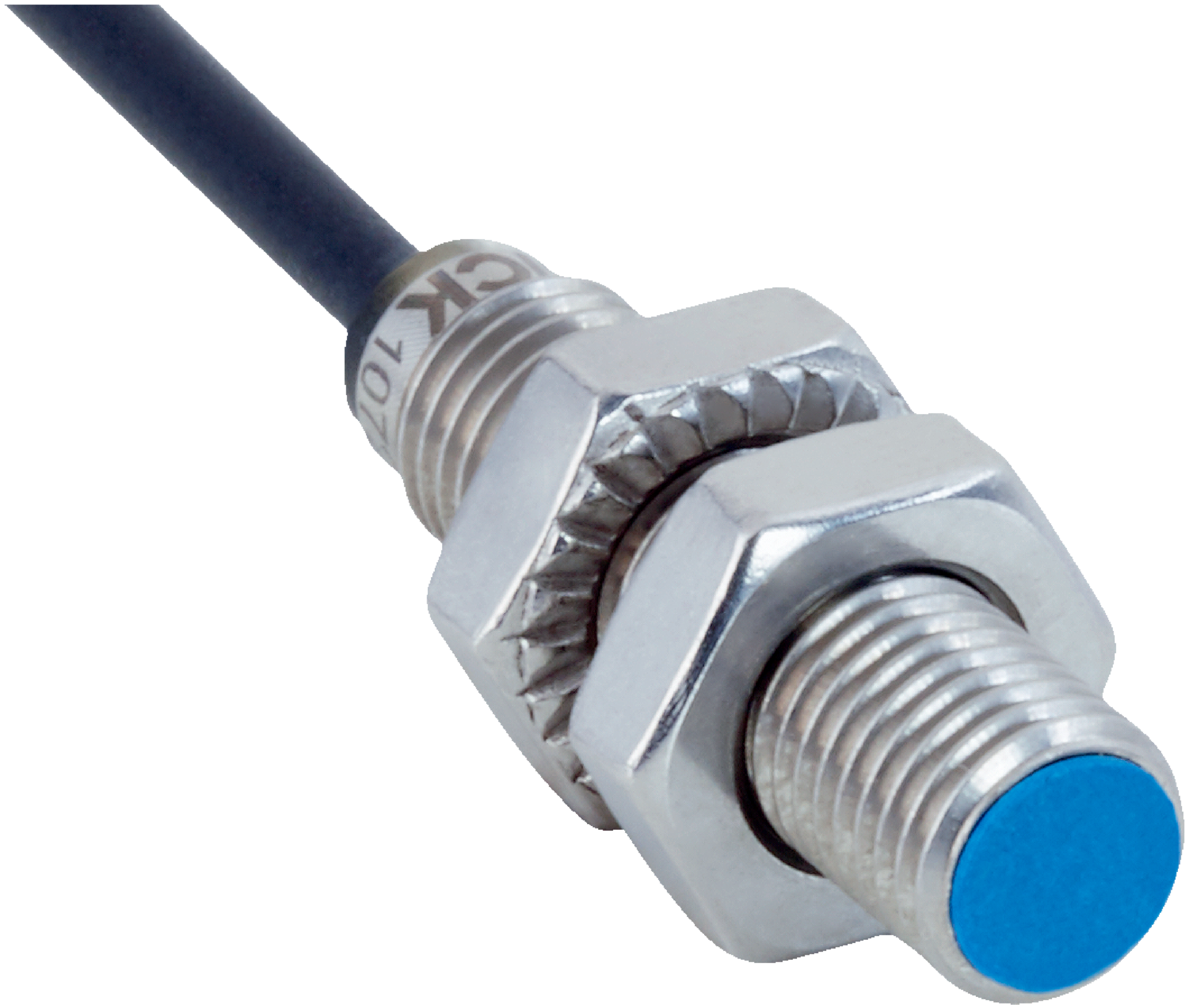

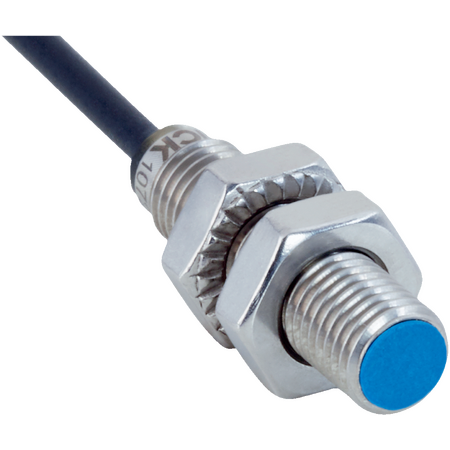

The SICK IMB08-02BDSVU5K is a robust inductive proximity sensor with a short-body stainless steel housing
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IMB08-02BDSVU5K | Inductive proximity sensors
Brand: SICK
SKU: 1082062
Alternatively Known As: Inductive Proximity Sensor M8, M8 Proximity Sensor, Short Body Inductive Sensor, SICK Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V (IP68), ≤ 4.5 V (IP69K)
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Off-state current: Typically 0.8 mA
- Minimum load current: ≥ 3 mA
- Cable material: PUR, diameter 3 mm, conductor size 0.14 mm²
- Short-circuit protection included
- Power-up pulse: ≤ 5 ms
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Housing length: 32 mm
- Thread length: 28 mm
- Tightening torque max: Typically 7 Nm to 14 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 8mm x 32mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- Cable connection, 2-wire, 5 m length
- Normally open (NO) output function with DC 2-wire electrical wiring
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing environmental impact of failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB08-02BDSVU5K Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable object detection in harsh environments.
