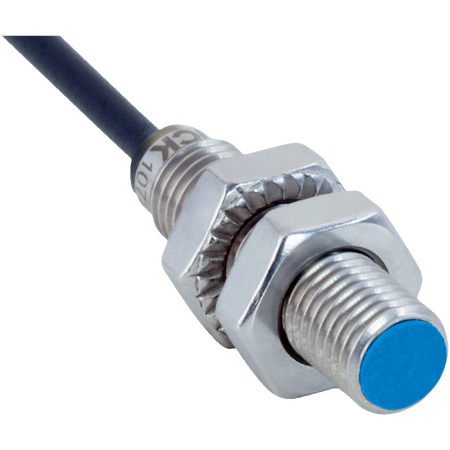

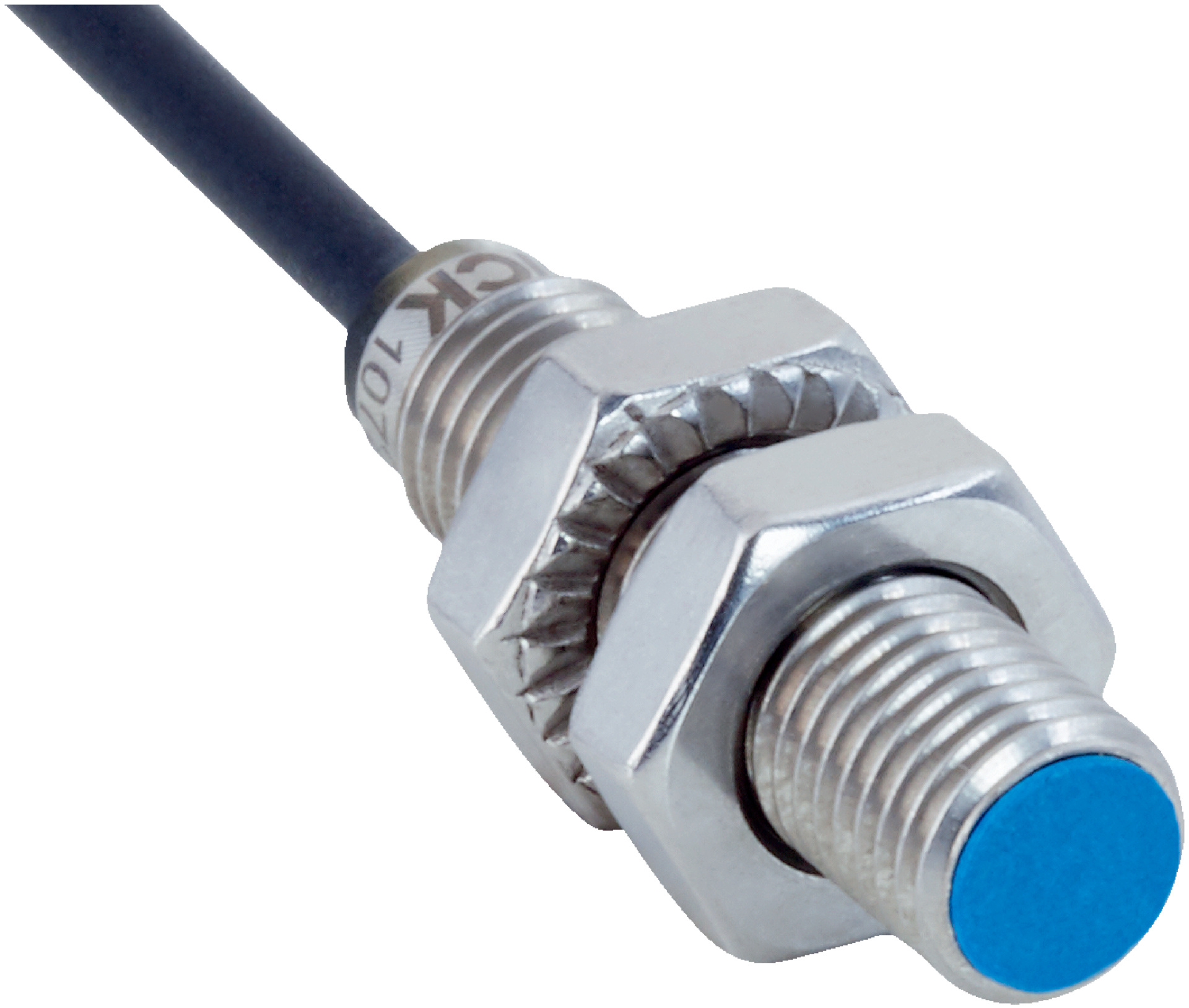

IMB08-02BPSVU5KS12 | Inductive proximity sensors
The SICK IMB08-02BPSVU5KS12 is a robust inductive proximity sensor with a short-body stainless steel housing, 2 mm sensing range, and IP68/IP69K protection, ideal for industrial and mobile machine applications in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IMB08-02BPSVU5KS12 | Inductive proximity sensors
Brand: SICK
SKU: 1126252
Alternatively Known As: M8 Inductive Proximity Sensor, Short Body Proximity Sensor, PNP NO Proximity Sensor, IO-Link Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 3 mm, conductor size 0.14 mm²
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 15 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Thread length: 28 mm
- Tightening torque: Typical 7 Nm to 14 Nm
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud), 1 Byte process data
- Dimensions (H x L x W): 8mm x 32mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 6g thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NO function
- Cable connection, 3-wire, 5 m length
- Enclosure rating IP68 and IP69K for water and dust resistance
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator included
- Shock and vibration resistant up to 150 g and 1 million cycles
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Communication interface IO-Link V1.0 with COM2 (38.4 kBaud)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolant lubricants and difficult application conditions
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMB08-02BPSVU5KS12 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
