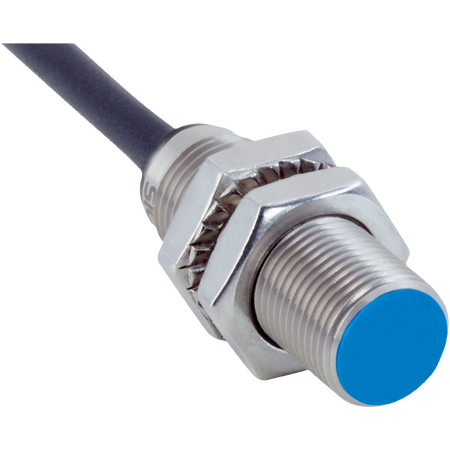

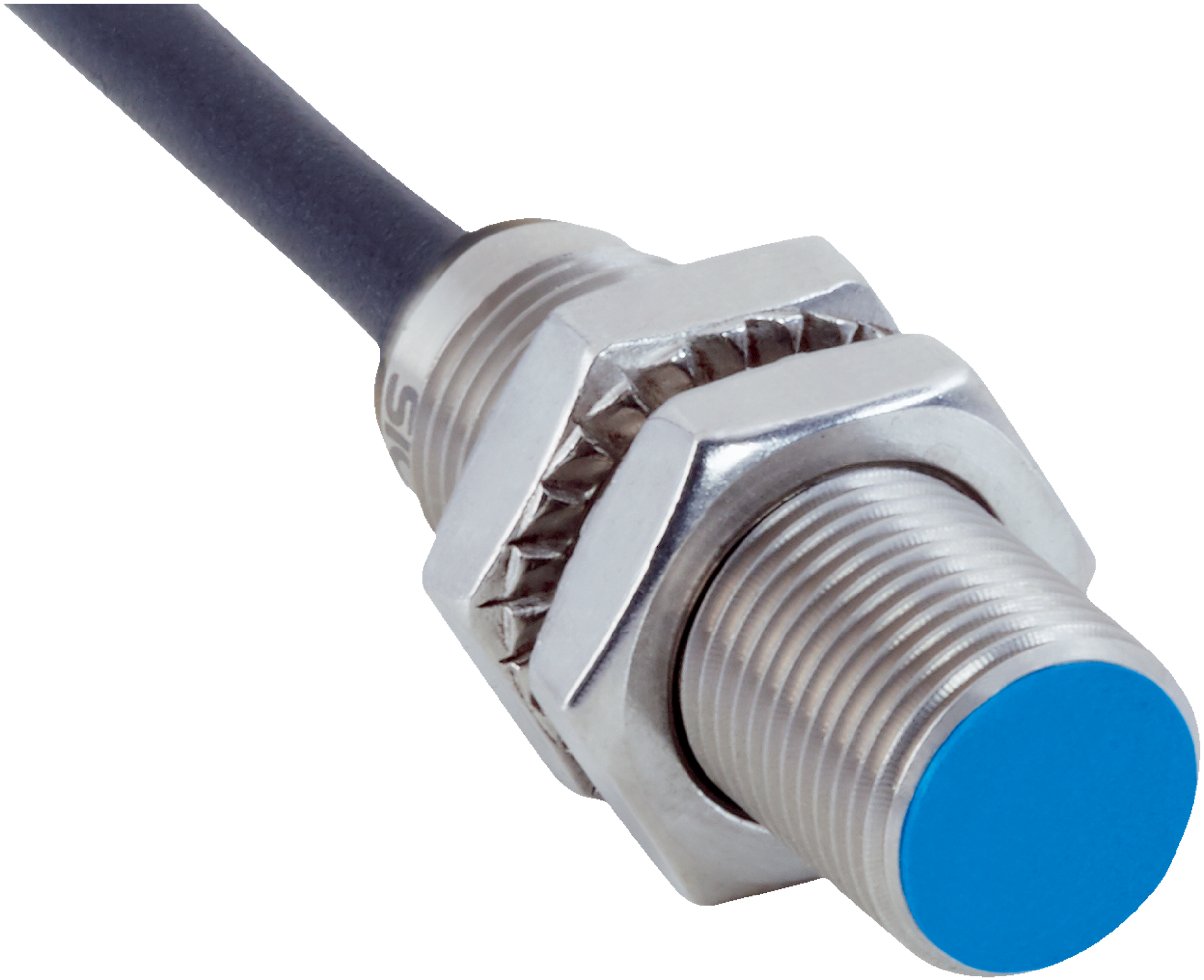

IMB12-04BPSVU2K | Inductive proximity sensors
The SICK IMB12-04BPSVU2K is a robust inductive proximity sensor with a 4 mm sensing range, designed for industrial applications including mobile machines and zones with coolants. It features a stainless steel housing, IP68/IP69K protection, and IO-Link communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IMB12-04BPSVU2K | Inductive proximity sensors
Brand: SICK
SKU: 1072754
Alternatively Known As: Inductive Proximity Sensor M12, Proximity Switch, Inductive Sensor 4mm, PNP Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 4.5 mm
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Thread length: 30 mm
- Tightening torque max: Typ. 20 Nm to 32 Nm
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 34mm x 34mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- 4 mm sensing range with 3.24 mm safe sensing range
- Flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NO function
- Cable connection, 3-wire, 2 m length
- IP68 and IP69K rated for protection against dust and high-pressure water
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Communication interface IO-Link V1.0 with COM2 (38.4 kBaud)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting torque and correct wiring for optimal sensor performance and safety.
Applications
- Industrial automation for object detection
- Mobile machines and equipment
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Resistant to harsh environments reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB12-04BPSVU2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
