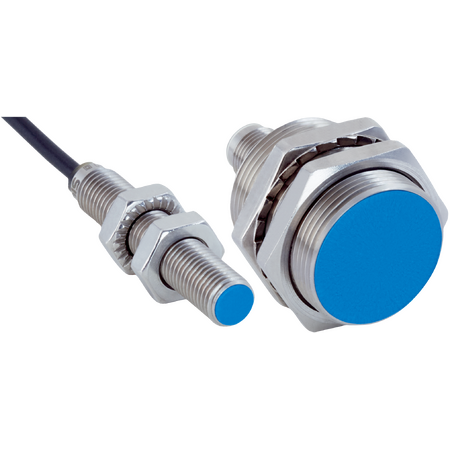

IMB12-08NDSVU2K | Inductive proximity sensors

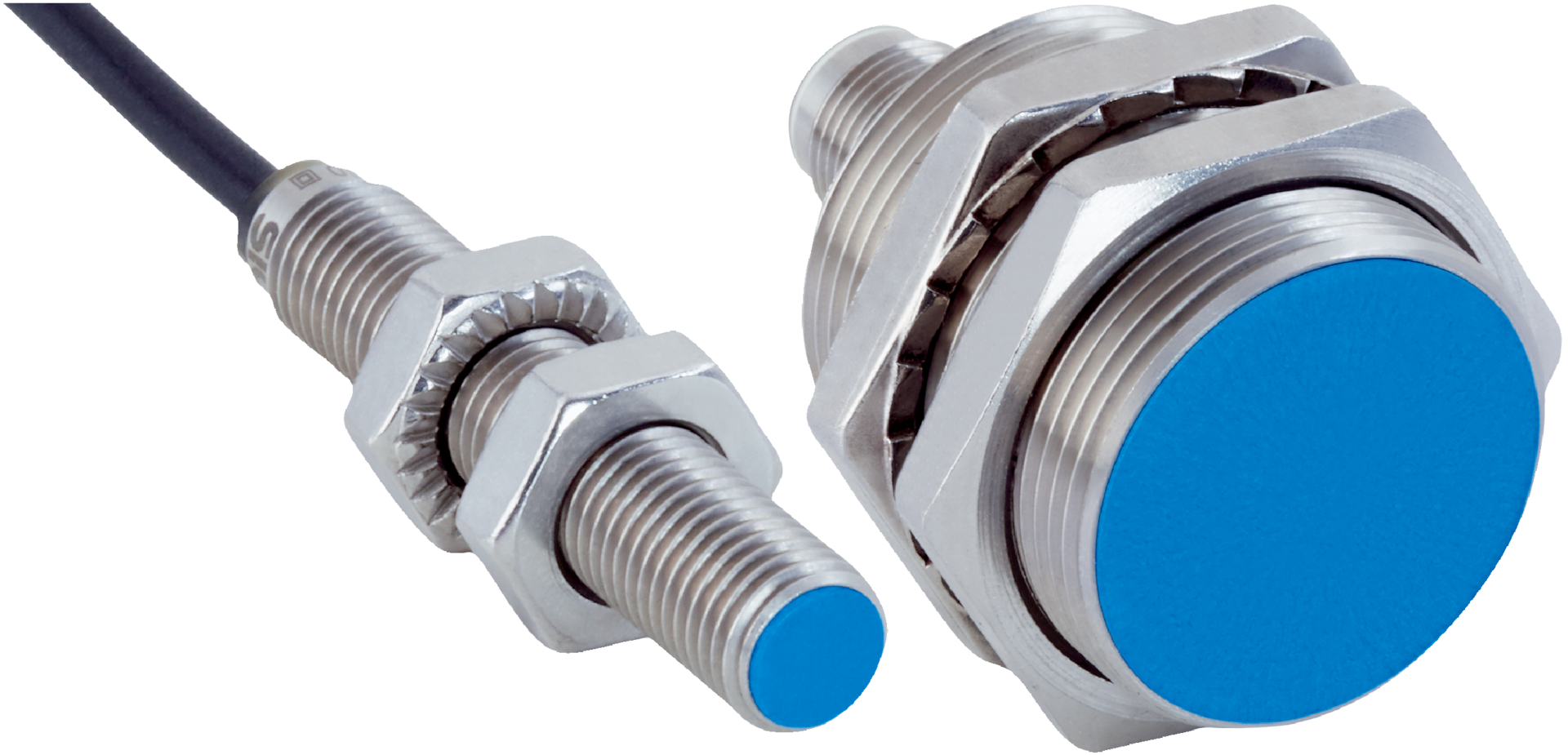

The SICK IMB12-08NDSVU2K is a robust inductive proximity sensor with a short-body stainless steel housing, 8 mm sensing range, and IP68/IP69K protection, ideal for industrial and mobile machine applications in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IMB12-08NDSVU2K | Inductive proximity sensors
Brand: SICK
SKU: 1076281
Alternatively Known As: Inductive Proximity Sensor M12, M12 Inductive Sensor, Proximity Switch M12, SICK IMB12 Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V (IP68), ≤ 4.5 V (IP69K)
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: Typ. 0.8 mA (≤ 1.2 mA at max voltage and 100°C)
- Minimum load current: ≥ 3 mA
- Cable material: PUR, diameter Ø 4.5 mm
- Conductor size: 0.34 mm²
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40°C to +100°C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Housing length: 34 mm
- Thread length: 25 mm
- Tightening torque max: Typ. 20 Nm (IP68), Typ. 32 Nm (IP69K)
- Protection class: III
- EMC: According to EN 60947-5-2
- Short-circuit protection: Yes
- Power-up pulse: ≤ 5 ms
- Dimensions (H x L x W): 34mm x 34mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Non-flush installation type with 8 mm sensing range
- High switching frequency of 2,000 Hz
- Cable connection, 2-wire, 2 m length
- Output function: Normally Open (NO)
- Enclosure rating IP68 and IP69K for harsh environments
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of plastic LCP
- Short-circuit protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting torque and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for position detection
- Mobile machines in harsh environments
- Zones with coolant and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB12-08NDSVU2K Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable sensing in harsh environments.
