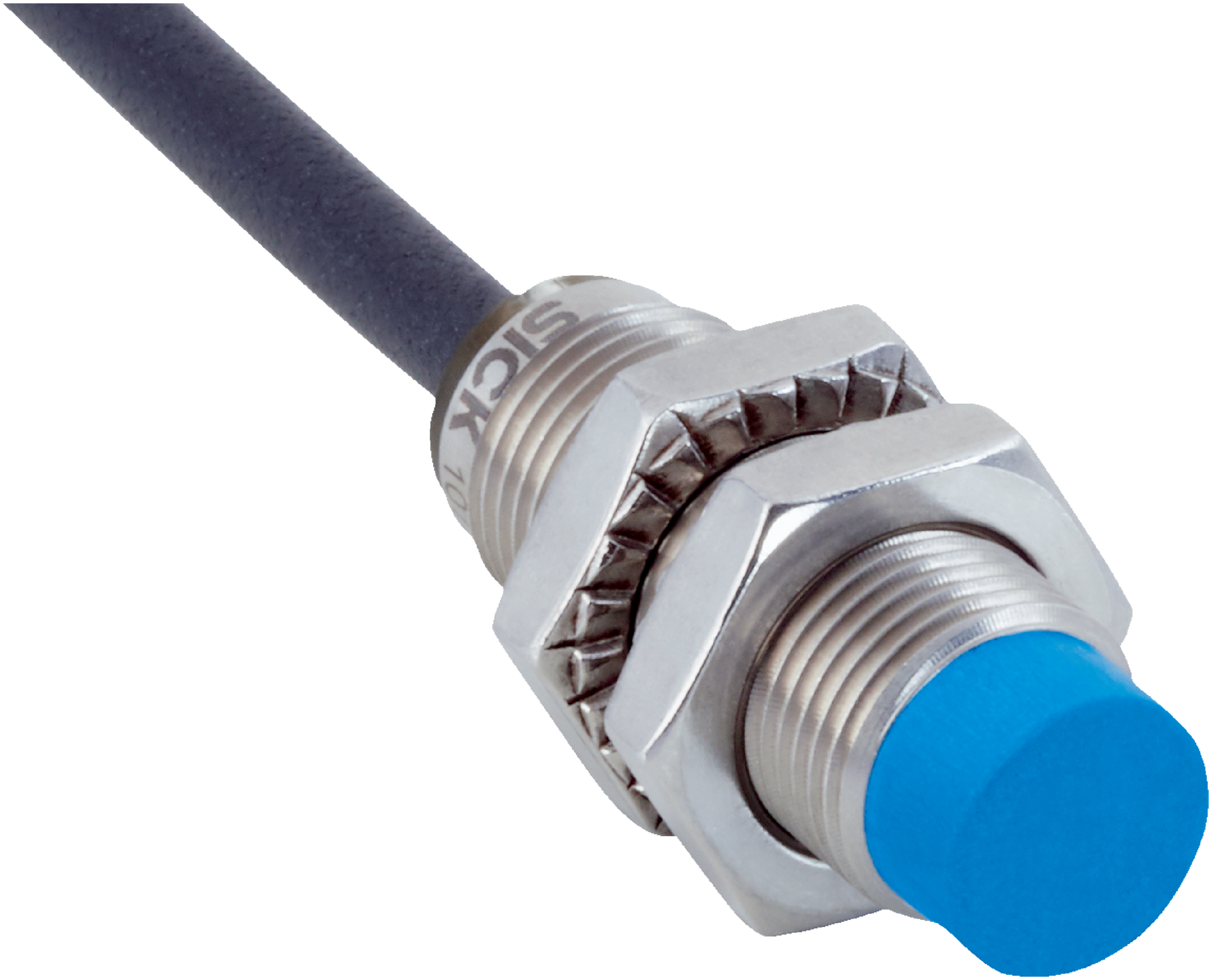

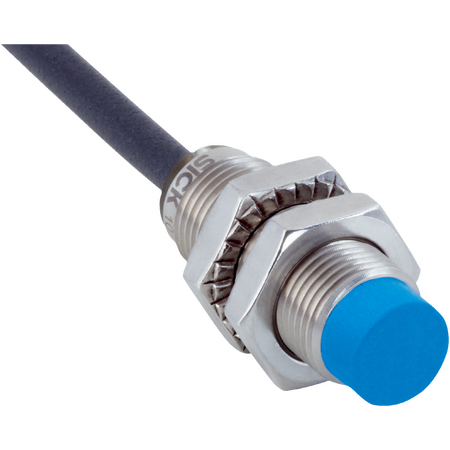

IMB12-08NPOVU2K | Inductive proximity sensors
The SICK IMB12-08NPOVU2K is a robust inductive proximity sensor with a short-body stainless steel housing, 8 mm sensing range, and IP68/IP69K protection, ideal for industrial and mobile machine applications in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IMB12-08NPOVU2K | Inductive proximity sensors
Brand: SICK
SKU: 1072759
Alternatively Known As: Inductive Proximity Sensor M12, IMB12 Proximity Sensor, SICK Proximity Sensor 8mm, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 4.5 mm, conductor size 0.34 mm²
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; vibration resistance: 10 Hz to 500 Hz
- Ambient operating temperature: -40 °C to +100 °C
- Protection class: III
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic LCP
- Switching frequency: 2,000 Hz
- Switching output: PNP, NC function
- Connection type: Cable, 3-wire, 2 m length
- Enclosure rating: IP68 and IP69K
- Dimensions (H x L x W): 34mm x 34mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NC function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for harsh environments
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of plastic LCP
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Installation by qualified personnel recommended; ensure proper mounting torque and wiring according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolant lubricants and difficult application conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to coolants and lubricants minimizes environmental contamination
- Long service life reduces resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB12-08NPOVU2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
