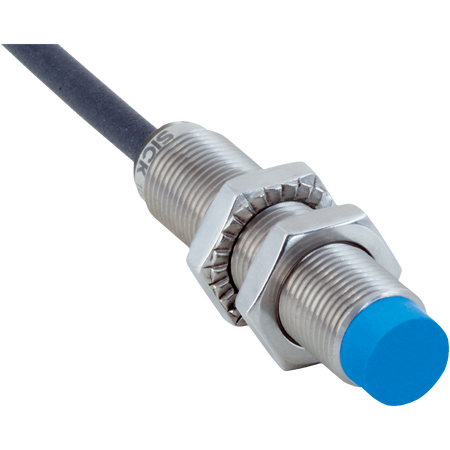

IMB12-08NPOVU2S | Inductive proximity sensors
The SICK IMB12-08NPOVU2S is a robust inductive proximity sensor with M12 thread, 8 mm sensing range, and IP68/IP69K protection, ideal for industrial and mobile machine applications in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IMB12-08NPOVU2S | Inductive proximity sensors
Brand: SICK
SKU: 1072744
Alternatively Known As: Inductive Proximity Sensor M12, IMB12 Proximity Sensor, SICK Proximity Switch, M12 Inductive Sensor
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Installation type: Non-flush
- Switching frequency: 2,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR
- Conductor size: 0.34 mm²
- Cable diameter: 4.5 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Sensing face material: Plastic, LCP
- Housing length: 50 mm
- Thread length: 41 mm
- Tightening torque max: Typically 20 Nm to 32 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 50mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NC output function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant for durability
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- Energy-efficient operation minimizes power consumption
- Resistant to harsh environments reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB12-08NPOVU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
