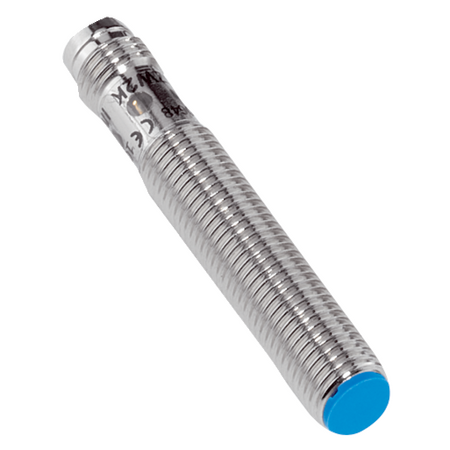

IME08-02BNOZT0S | Inductive proximity sensors
The SICK IME08-02BNOZT0S is a durable M8 inductive proximity sensor with a 2 mm sensing range, designed for reliable metal detection and automation applications with IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-02BNOZT0S | Inductive proximity sensors
Brand: SICK
SKU: 1040882
Alternatively Known As: M8 Inductive Proximity Sensor, SICK IME08 Sensor, Proximity Switch M8, Inductive Sensor 2mm
Technical Specifications
- Housing: Standard design, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 50 mm
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 8mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type with IP67 enclosure rating
- High switching frequency of 4,000 Hz
- NPN normally closed switching output with DC 3-wire electrical wiring
- Robust brass nickel-plated housing and plastic PA 66 sensing face
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient DC 3-wire design
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IME08-02BNOZT0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
