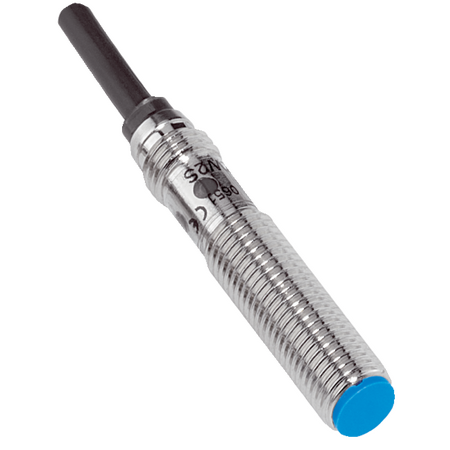

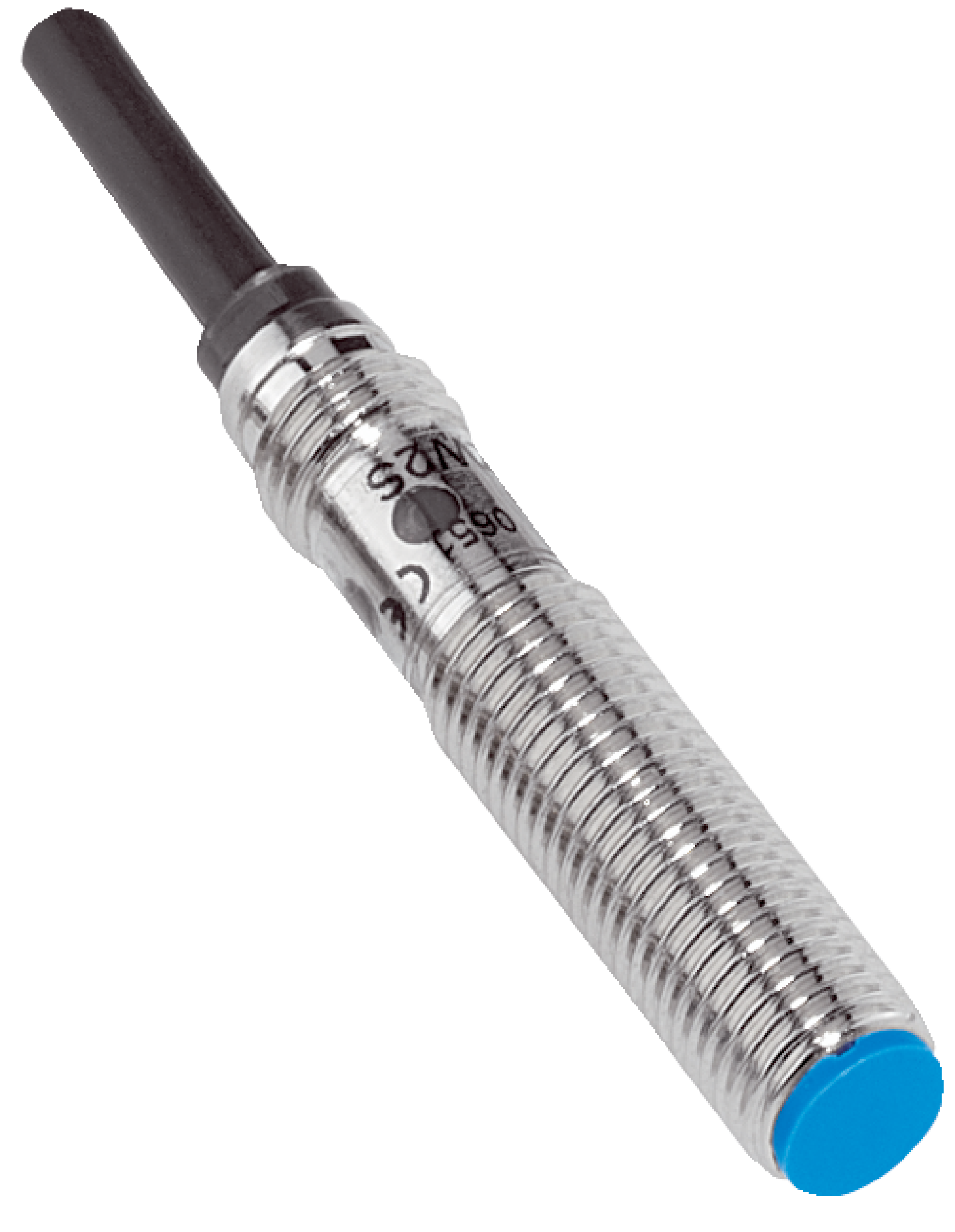

IME08-02BPSZU2KS68 | Inductive proximity sensors
The SICK IME08-02BPSZU2KS68 is a compact M8 inductive proximity sensor with a 2 mm sensing range, designed for reliable metal detection in industrial automation applications. It features a robust IP67 rated housing and high switching frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-02BPSZU2KS68 | Inductive proximity sensors
Brand: SICK
SKU: 1114609
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Sensor, SICK Proximity Sensor M8, Inductive Sensor M8 x 1
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Switching output: PNP normally open
- Switching frequency: 4,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M8 x 1
- Housing length: 43 mm
- Thread length: 25 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 43mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- PNP normally open switching output
- Cable connection, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with DC 3-wire electrical wiring
- Robust housing minimizes environmental damage from dust and water ingress
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-02BPSZU2KS68 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
