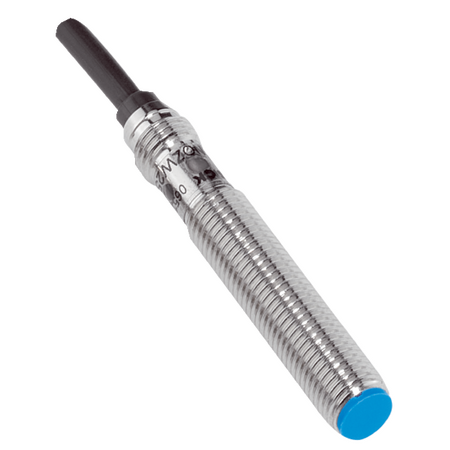

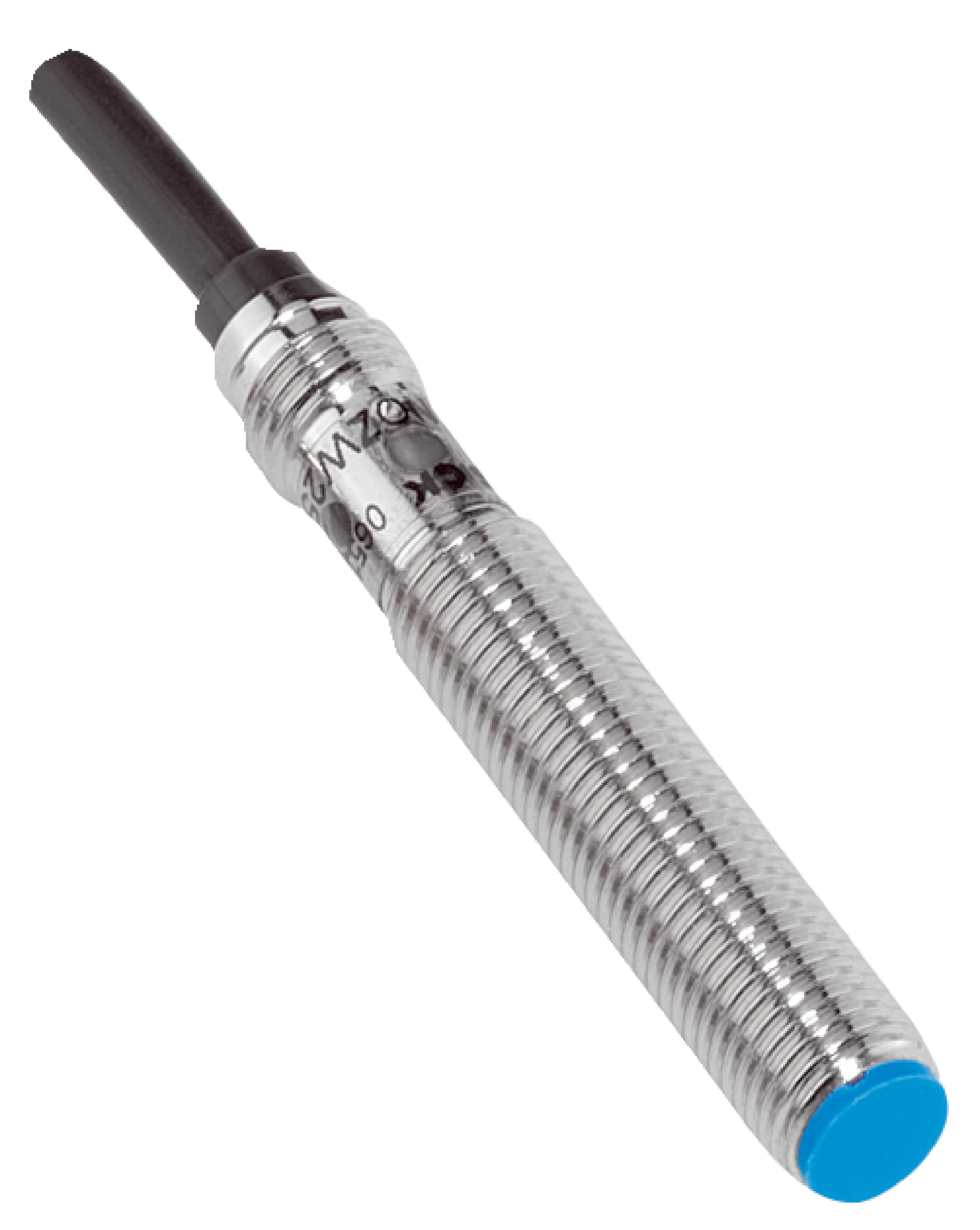

IME08-03BPSZQDSS71 | Inductive proximity sensors
The SICK IME08-03BPSZQDSS71 is an M8 inductive proximity sensor with a 3 mm sensing range, designed for reliable object detection in industrial automation with robust IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-03BPSZQDSS71 | Inductive proximity sensors
Brand: SICK
SKU: 1128538
Alternatively Known As: Inductive Proximity Sensor M8, M8 Proximity Sensor, SICK Proximity Sensor, IME08 Sensor
Technical Specifications
- Housing: Standard design, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.43 mm
- Installation type: Quasi-flush
- Switching frequency: 1,000 Hz
- Connection type: Cable with M12, 8-pin connector, 1.5 m
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: 3.7 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 52 mm
- Thread length: 33.5 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 52mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design with M8 x 1 thread size
- 3 mm sensing range with safe sensing range of 2.43 mm
- Quasi-flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- Cable with M12, 8-pin connector, 1.5 m length
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nuts included (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Energy-efficient operation with low power consumption
- Durable IP67 housing reduces waste from frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-03BPSZQDSS71 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
