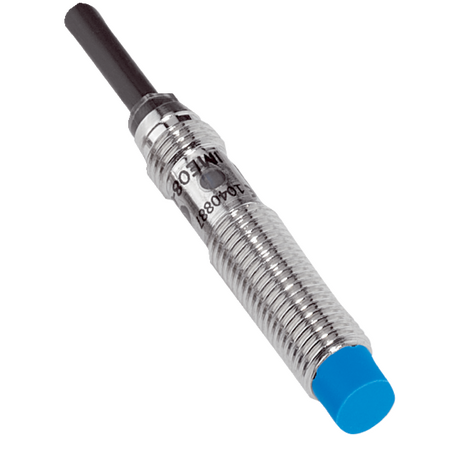

IME08-04NPOZW6K | Inductive proximity sensors

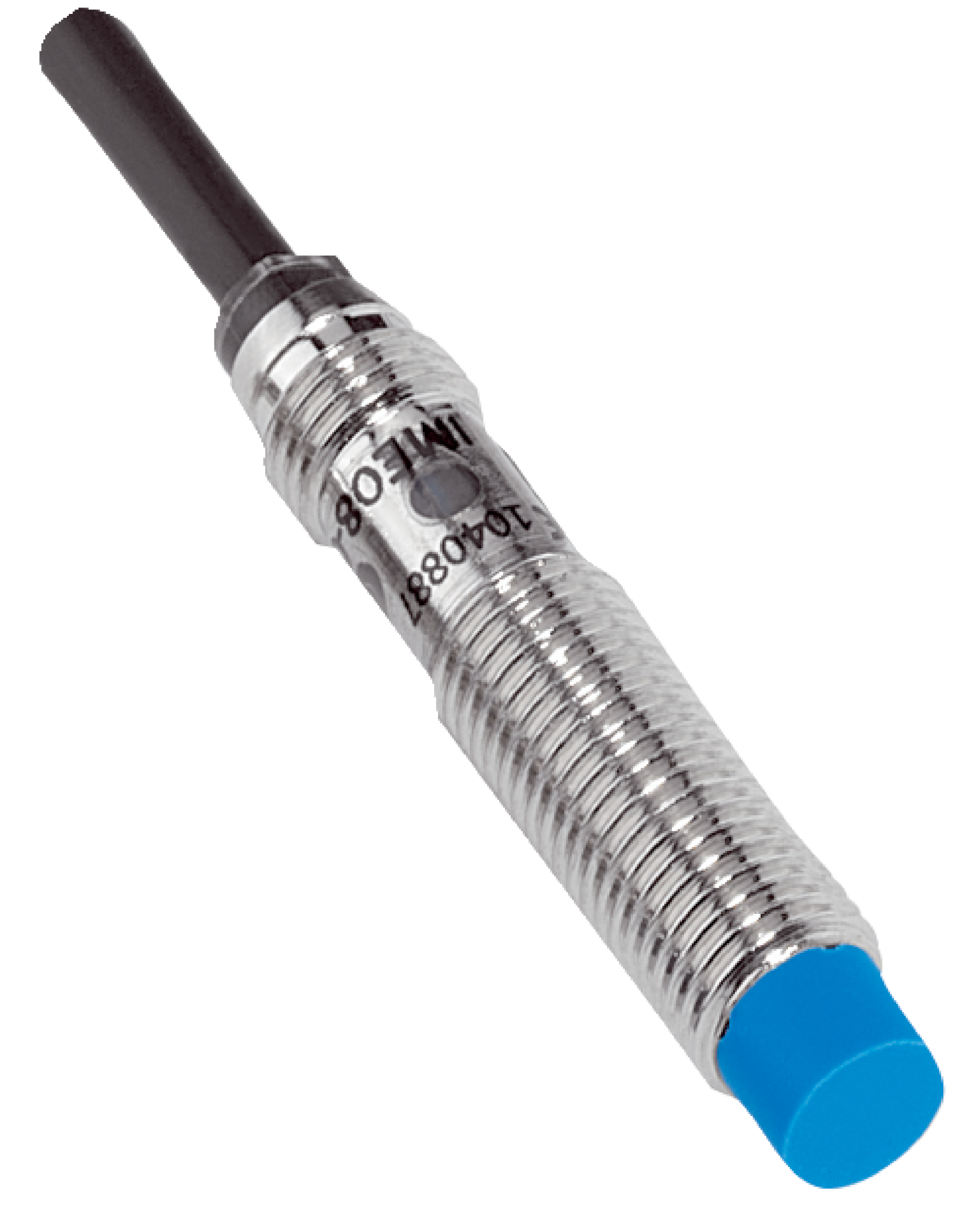

The SICK IME08-04NPOZW6K is a compact inductive proximity sensor with a 4 mm sensing range, designed for reliable non-contact detection in industrial automation applications. Featuring robust IP67 protection and high switching frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-04NPOZW6K | Inductive proximity sensors
Brand: SICK
SKU: 1053957
Alternatively Known As: Inductive Proximity Sensor M8, 4mm Proximity Switch, SICK IME08 Sensor, Non-flush Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 4,000 Hz
- Output type: PNP normally closed
- Current rating: Continuous current ≤ 200 mA, No load current ≤ 10 mA
- Cable: 3-wire PVC, 10 m length, 0.25 mm² conductor size, 3.9 mm diameter
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Protection rating: IP67
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 43mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 threaded housing with 8 mm diameter
- Non-flush installation type with 4 mm sensing range
- High switching frequency of 4,000 Hz for fast response
- PNP normally closed output with 3-wire DC connection
- IP67 rated enclosure for dust and water protection
- Includes two nickel-plated steel mounting nuts
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide operating temperature range from -25°C to +75°C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable construction extends product lifespan, reducing replacement frequency
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME08-04NPOZW6K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable metal object detection.
