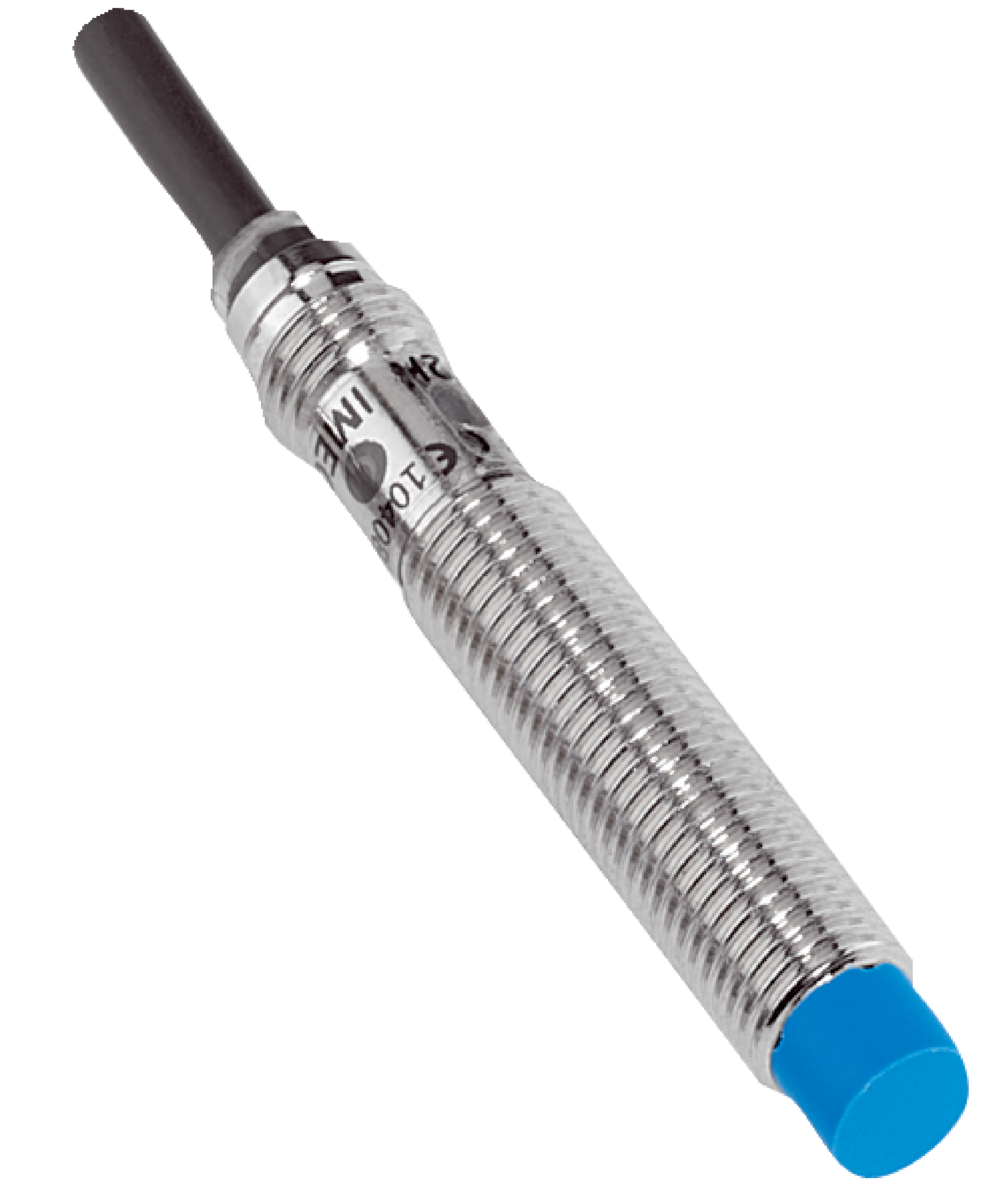

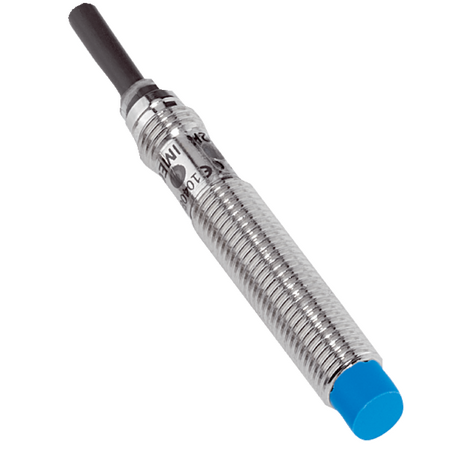

IME08-04NPSZUDSS56 | Inductive proximity sensors
The SICK IME08-04NPSZUDSS56 is an inductive proximity sensor featuring a standard M8 x 1 threaded housing, 4 mm sensing range, IP67 protection, and high switching frequency, ideal for industrial automation and control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-04NPSZUDSS56 | Inductive proximity sensors
Brand: SICK
SKU: 1106485
Alternatively Known As: M8 Inductive Proximity Sensor, SICK Proximity Sensor M8, IME08 Proximity Sensor, Inductive Sensor M8 Thread
Technical Specifications
- Housing: Standard design, nickel-plated brass
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range (Sn): 4 mm
- Safe sensing range (Sa): 3.24 mm
- Installation type: Non-flush
- Switching frequency: 4,000 Hz
- Connection type: Cable, 3-wire, 6 m length
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR
- Conductor size: 0.25 mm²
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 52 mm
- Thread length: 30 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Cable connection, 3-wire, 6 m length
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring reliable proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable materials extend product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME08-04NPSZUDSS56 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control system applications.
