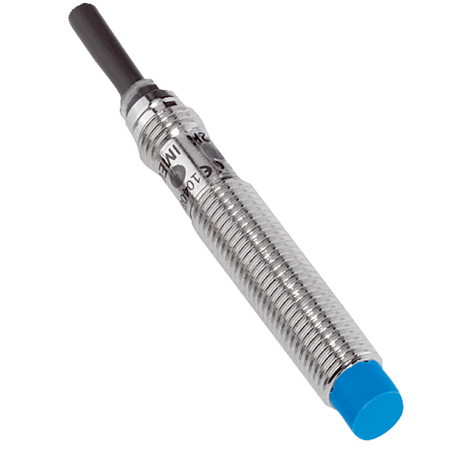

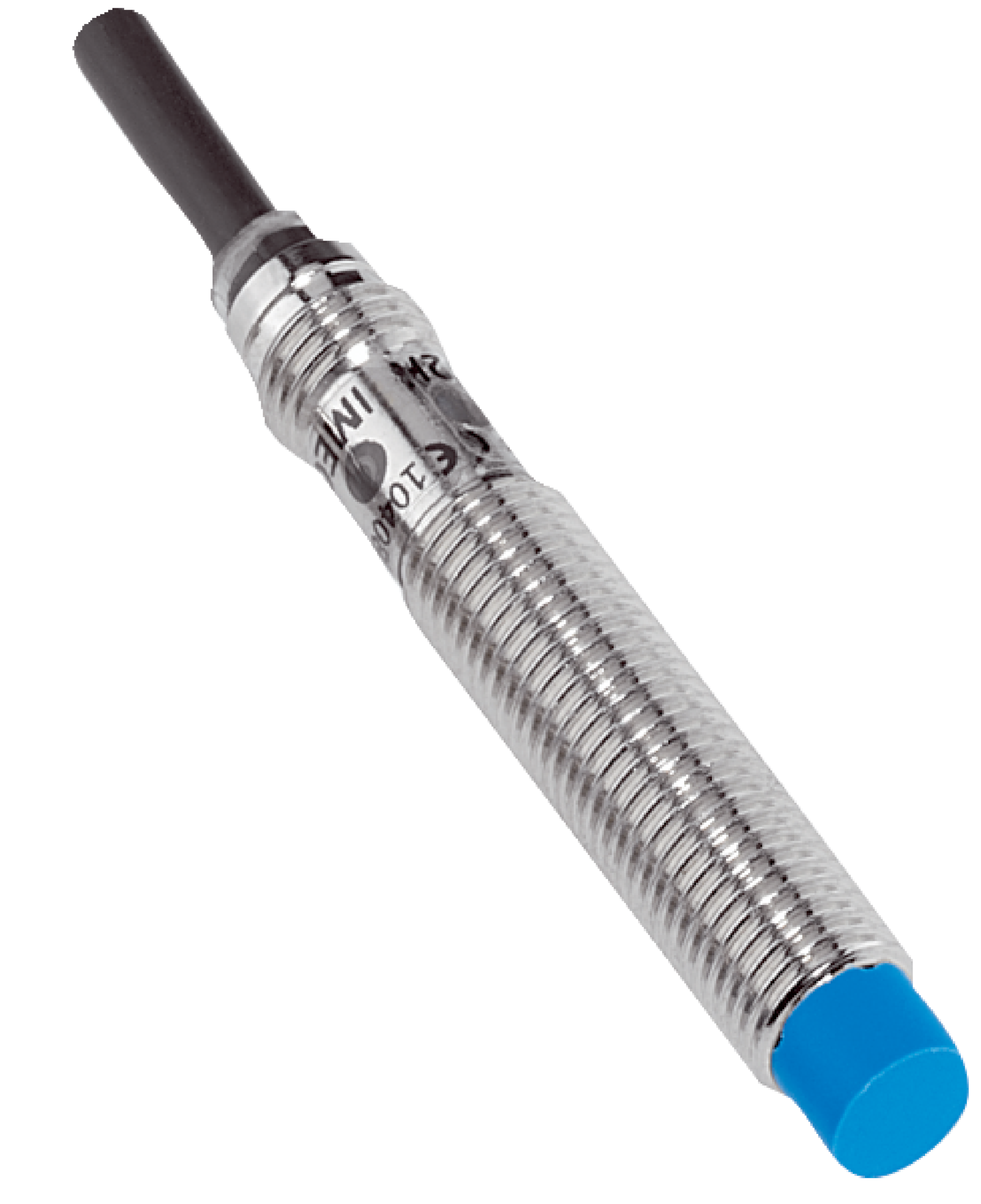

IME08-04NPSZW2SS50 | Inductive proximity sensors
The SICK IME08-04NPSZW2SS50 is a robust inductive proximity sensor with M8 thread, 4 mm sensing range, and IP67 protection, ideal for industrial automation and harsh environment applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-04NPSZW2SS50 | Inductive proximity sensors
Brand: SICK
SKU: 1097796
Alternatively Known As: Inductive Proximity Sensor M8, SICK IME08 Sensor, M8 Inductive Sensor, Proximity Switch M8
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: PNP, normally open
- Switching frequency: 4,000 Hz
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Operating temperature: -30°C to +75°C
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Short-circuit and power-up pulse protection included
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type with PNP normally open output
- High switching frequency of 4,000 Hz
- Cable connection with MOLEX connector, 0.1 m length
- IP67 rated enclosure for dust and water protection
- Extended operating temperature range from -30°C to +75°C
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
- Use in conveyor systems and robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-04NPSZW2SS50 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
