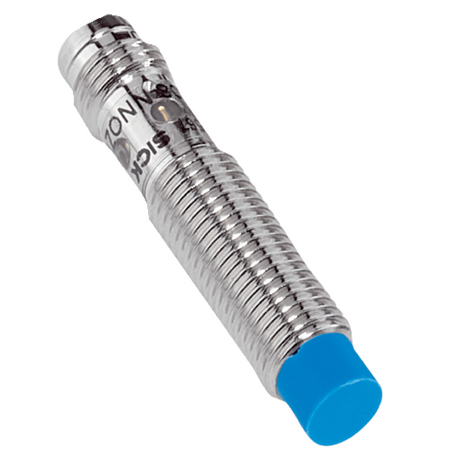

IME08-06NNOZT0K | Inductive proximity sensors

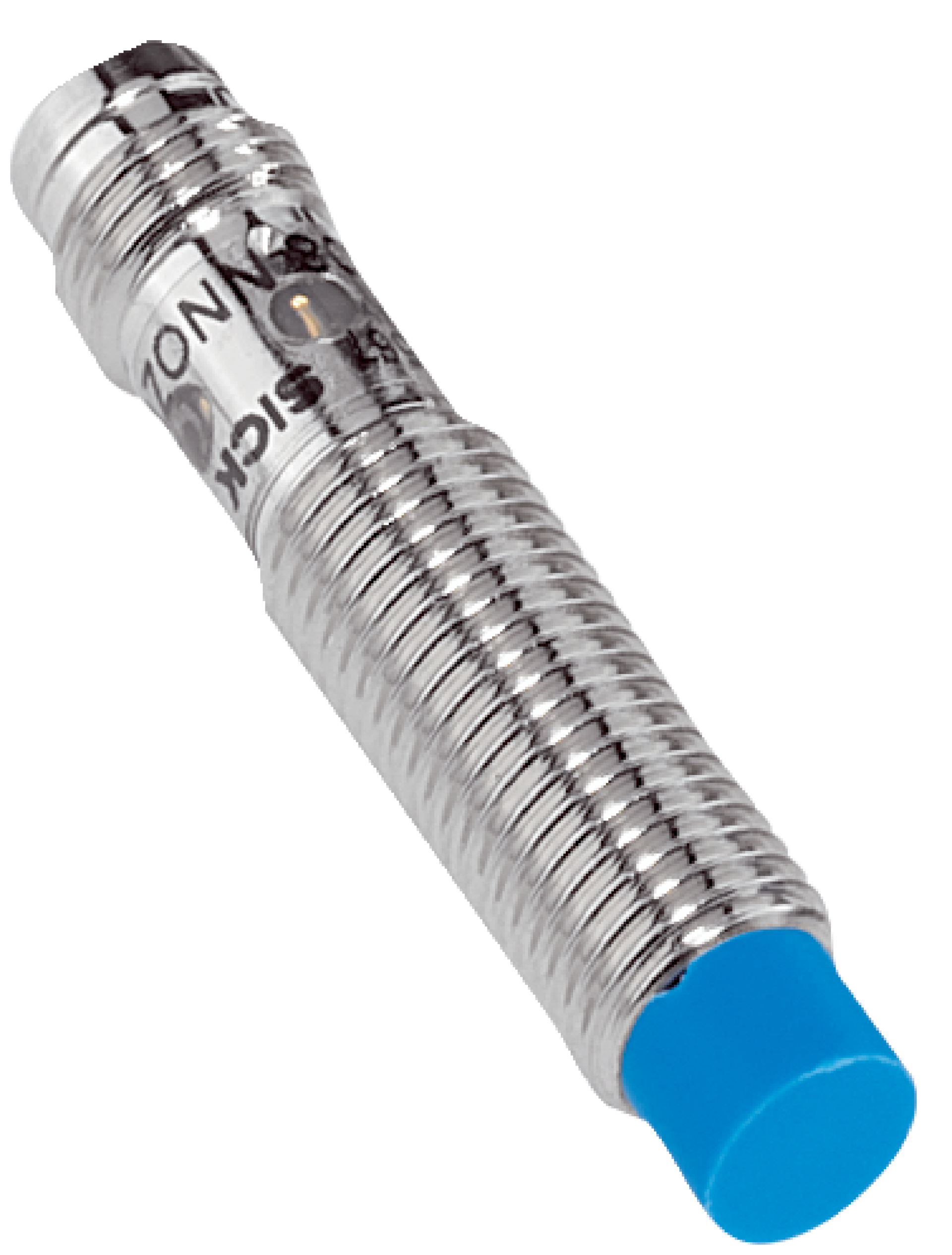

The SICK IME08-06NNOZT0K is a short-body M8 inductive proximity sensor with a 6 mm sensing range, designed for reliable non-contact object detection in industrial environments with IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-06NNOZT0K | Inductive proximity sensors
Brand: SICK
SKU: 1071203
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Sensor, SICK Proximity Sensor 6mm, NPN Proximity Sensor M8
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 21 mm
- Tightening torque max: ≤ 5 Nm
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally closed
- Switching frequency: 500 Hz
- Enclosure rating: IP67
- Dimensions (H x L x W): 41mm x 41mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 x 1 threaded housing
- Non-flush installation type
- Sensing range of 6 mm with triple sensing range feature
- Switching frequency up to 500 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Mounting nuts included (brass, nickel-plated)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Durable IP67 housing minimizes replacement frequency, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-06NNOZT0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
