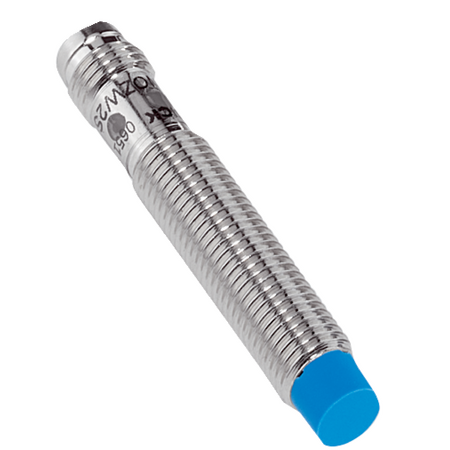

IME08-06NNSZT0S | Inductive proximity sensors

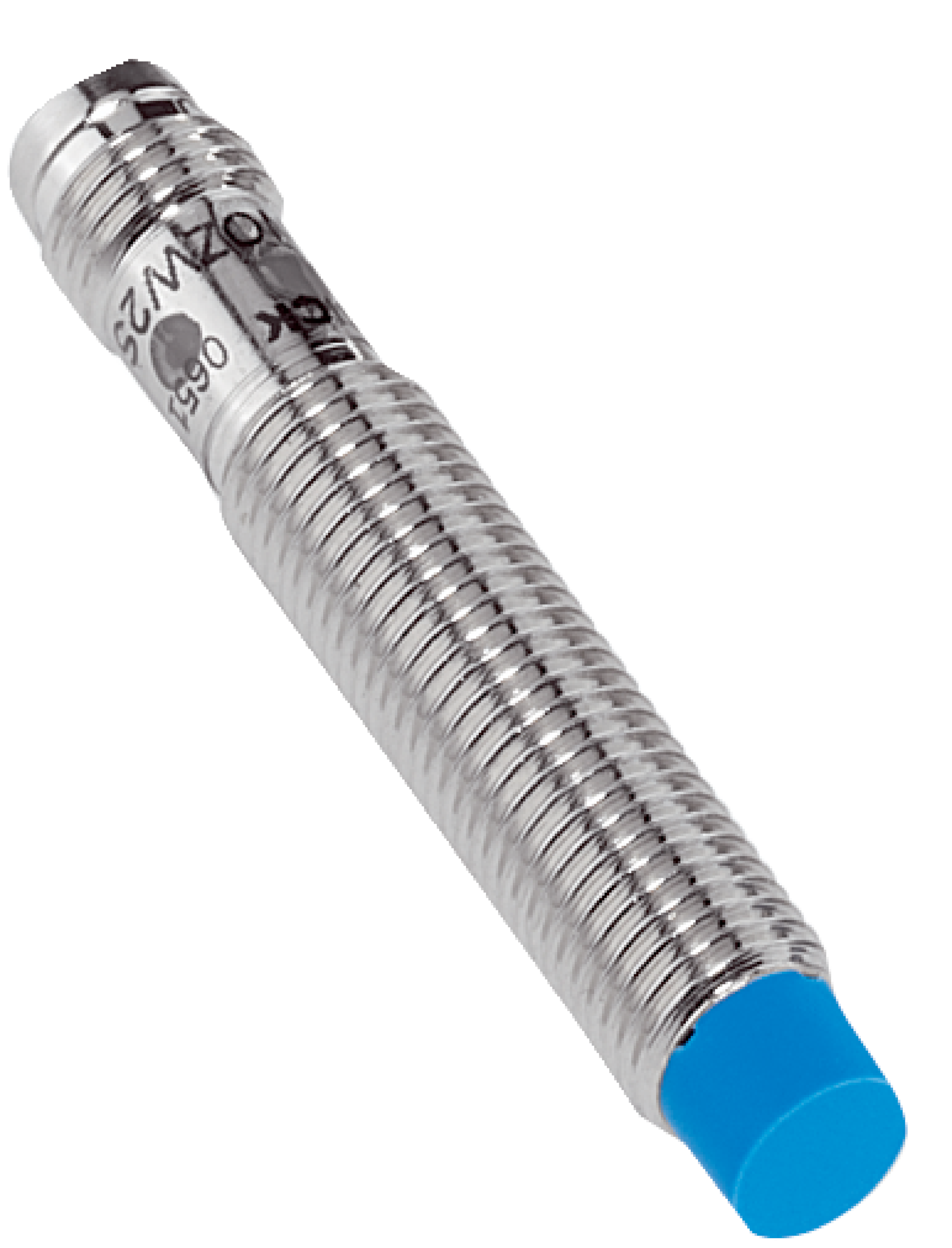

The SICK IME08-06NNSZT0S is an M8 threaded inductive proximity sensor with a 6 mm sensing range, designed for reliable non-flush installation in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-06NNSZT0S | Inductive proximity sensors
Brand: SICK
SKU: 1071210
Alternatively Known As: Inductive Proximity Sensor M8, IME08 Sensor, SICK Proximity Switch, M8 Inductive Sensor 6mm
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, normally open (NO)
- Switching frequency: 500 Hz
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 8mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Non-flush installation type
- Sensing range of 6 mm with triple sensing range feature
- Switching frequency up to 500 Hz
- NPN normally open (NO) switching output
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and monitoring systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Energy-efficient operation with low current consumption
- Durable IP67 rated housing minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-06NNSZT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
