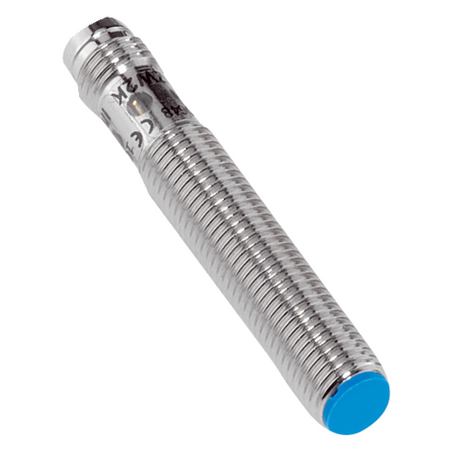

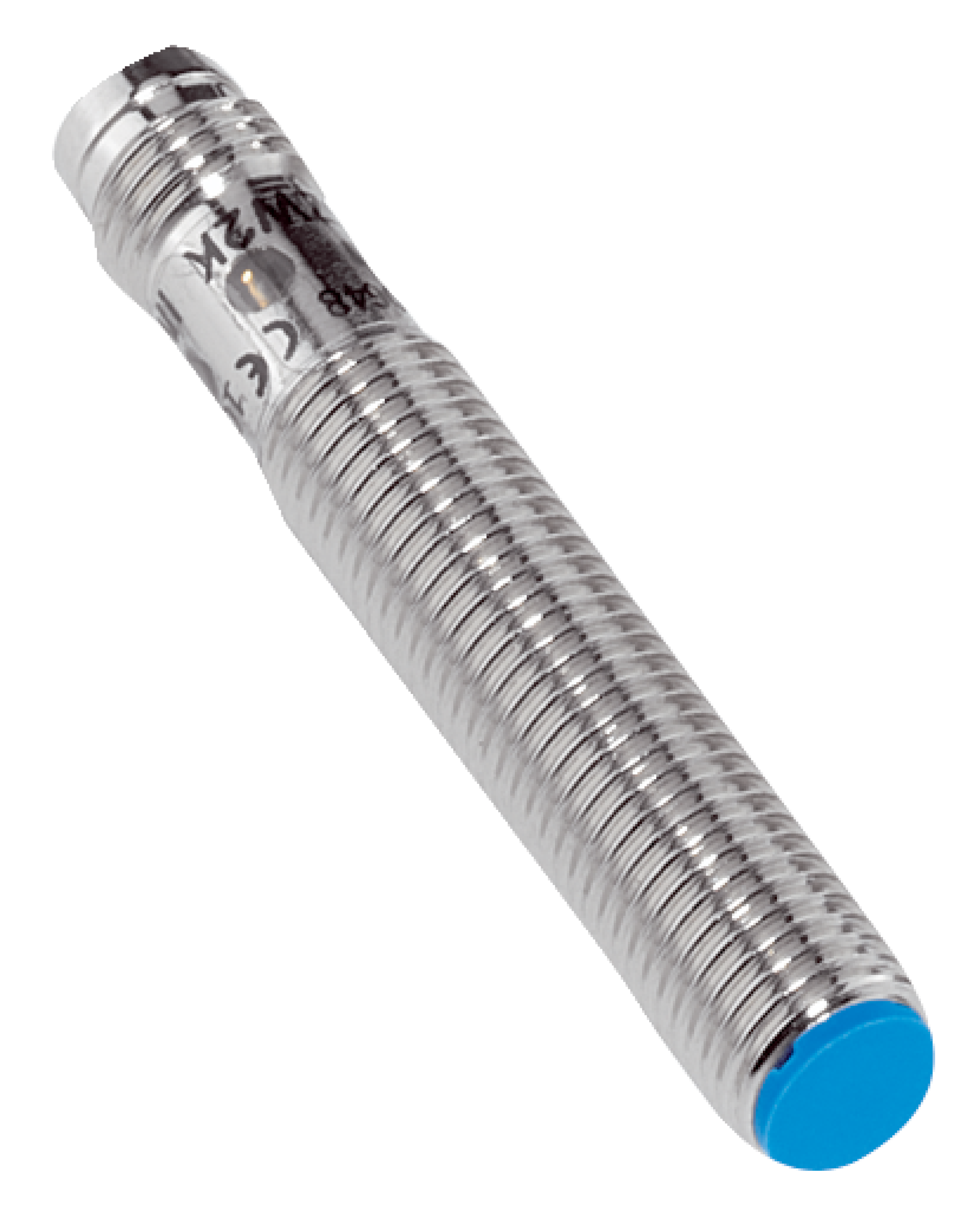

IME08-1B5POZT0S | Inductive proximity sensors
The SICK IME08-1B5POZT0S is a robust M8 x 1 inductive proximity sensor with a 1.5 mm sensing range, designed for reliable object detection in industrial automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-1B5POZT0S | Inductive proximity sensors
Brand: SICK
SKU: 1040842
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Sensor, SICK Proximity Sensor M8, Inductive Sensor M8 x 1
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 50mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design with M8 x 1 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NC output function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic PA 66 sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and wiring standards to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in conveyor systems
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME08-1B5POZT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications.
