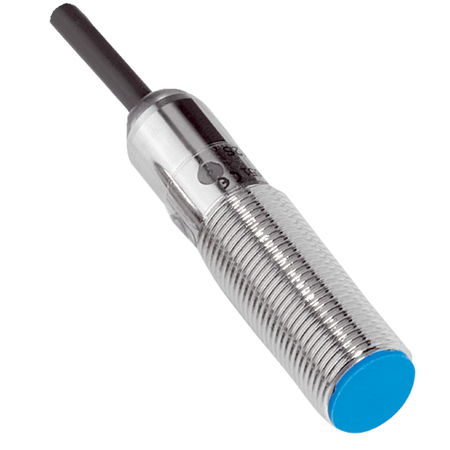

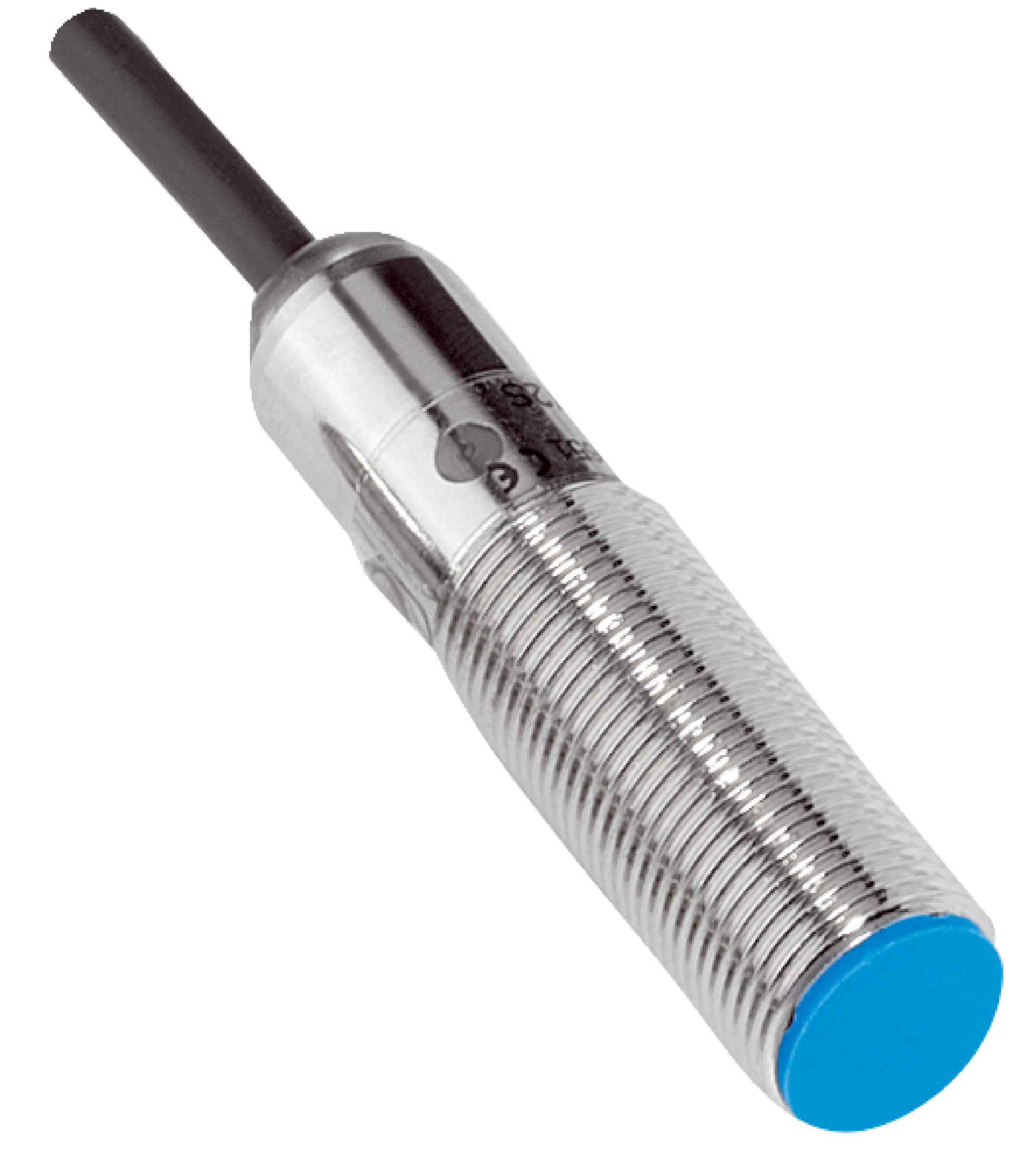

IME12-02BNOZW2K | Inductive proximity sensors
The SICK IME12-02BNOZW2K is a compact inductive proximity sensor with a 2 mm sensing range, designed for reliable metal detection in industrial automation applications. It features a robust IP67 rated brass housing and fast switching frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME12-02BNOZW2K | Inductive proximity sensors
Brand: SICK
SKU: 1040745
Alternatively Known As: Inductive Proximity Sensor M12, Metal Proximity Sensor, NPN Proximity Switch, Flush Mount Proximity Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 2000 Hz
- Connection type: Cable, 3-wire, 2 m length
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +75°C
- Housing length: 44 mm
- Thread length: 29 mm
- Tightening torque max: ≤ 12 Nm
- UL File No.: NRKH.E181493
- Dimensions (H x L x W): 44mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body M12 threaded housing with 2 mm sensing range
- Flush installation type with IP67 rated enclosure for dust and water resistance
- High switching frequency of 2000 Hz for fast response
- NPN normally closed switching output with DC 3-wire electrical wiring
- Robust brass nickel-plated housing with plastic PA 66 sensing face
- Shock and vibration resistant up to 30 g
- Includes two brass nickel-plated mounting nuts
- Wide operating temperature range from -25°C to +75°C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and extends equipment life
- Durable construction minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME12-02BNOZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
