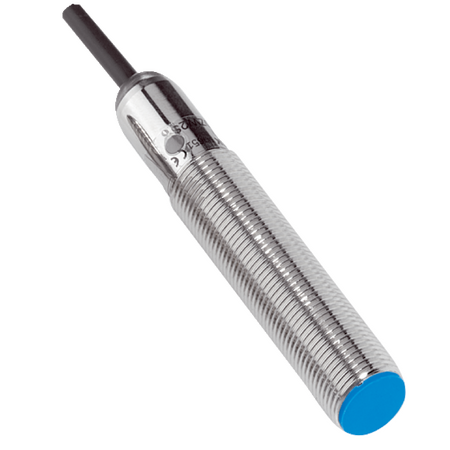

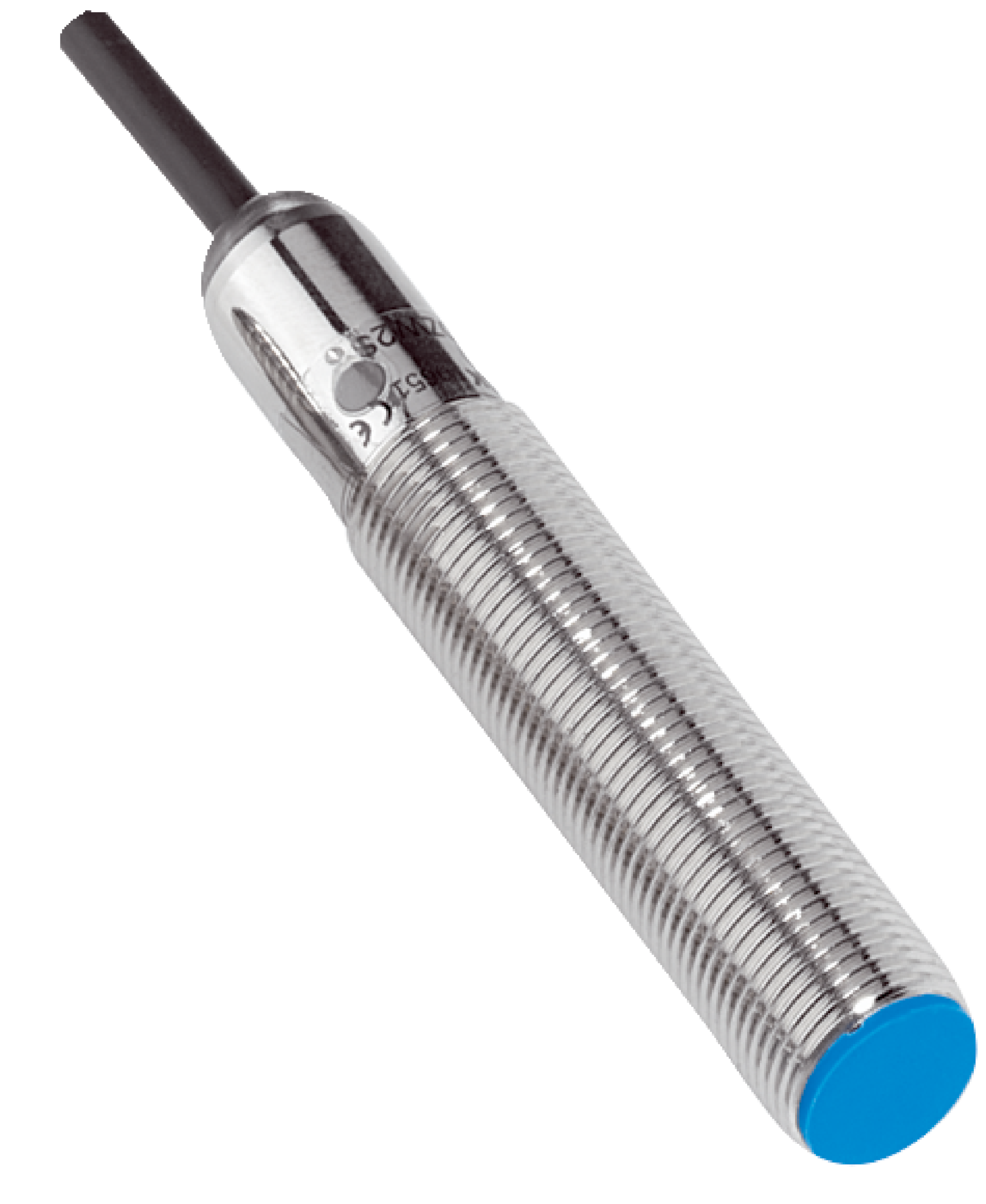

IME12-04BNSZW2S | Inductive proximity sensors
The SICK IME12-04BNSZW2S is a robust inductive proximity sensor with a 4 mm sensing range, designed for flush installation in industrial automation applications. It features a durable brass housing, IP67 protection, and high switching frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME12-04BNSZW2S | Inductive proximity sensors
Brand: SICK
SKU: 1040774
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Switch, NPN Proximity Sensor, Flush Mount Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Switching output: NPN, normally open
- Switching frequency: 2,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M12 x 1
- Thread length: 48 mm
- Housing length: 63 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- High switching frequency of 2,000 Hz
- NPN normally open switching output
- Cable connection, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable construction extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-04BNSZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications.
