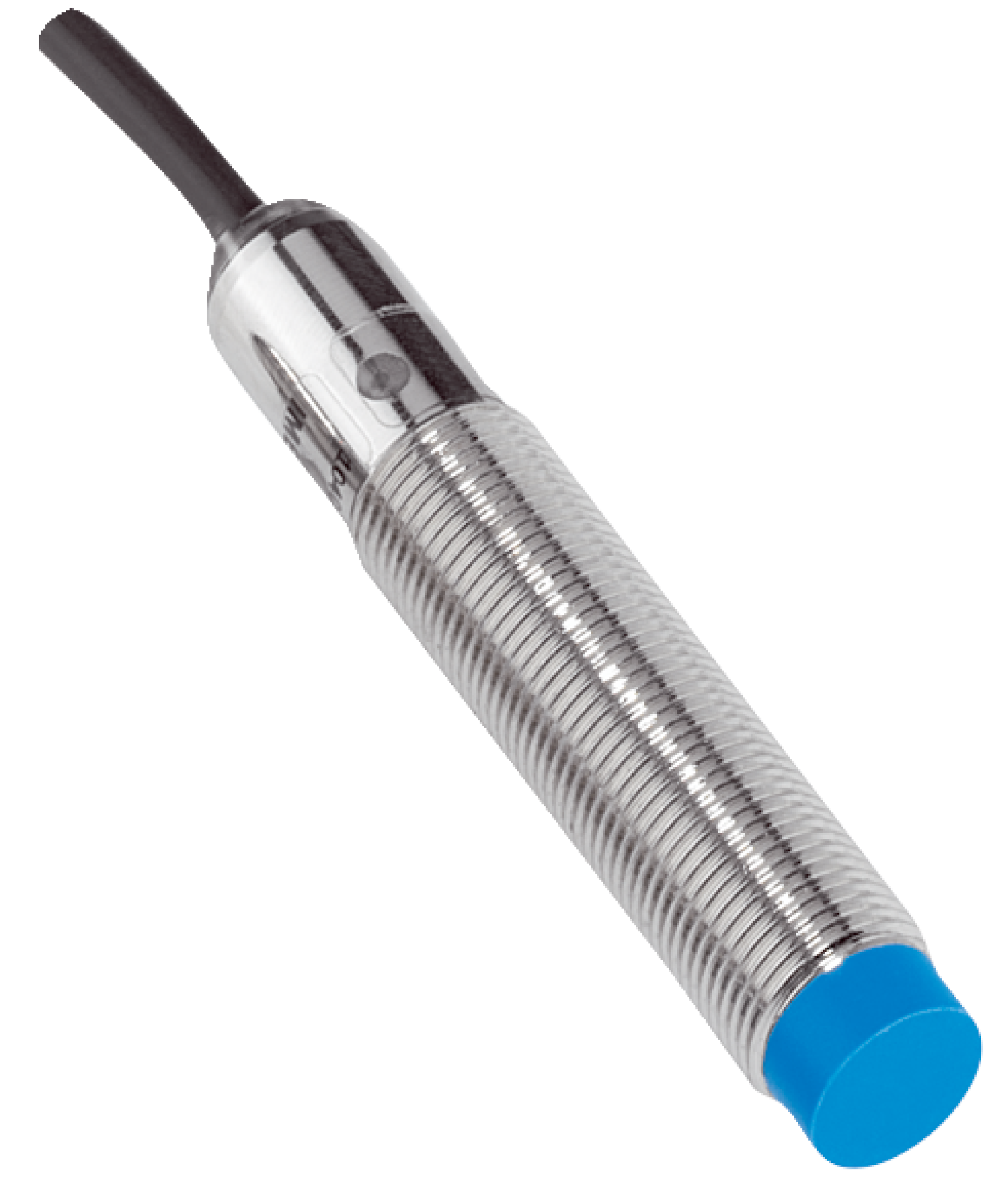

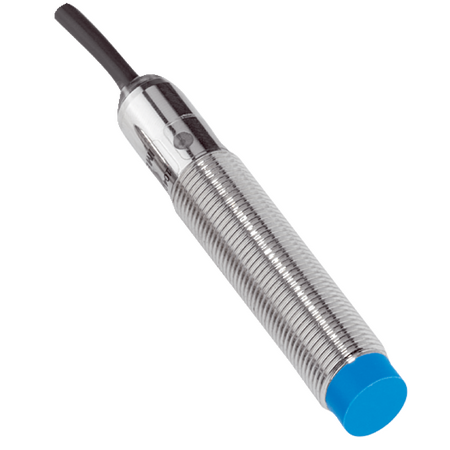

IME12-08NPSZW5S | Inductive proximity sensors
The SICK IME12-08NPSZW5S is an inductive proximity sensor with M12 thread, 8 mm sensing range, and IP67 rating, ideal for reliable non-contact metal detection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME12-08NPSZW5S | Inductive proximity sensors
Brand: SICK
SKU: 1047147
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Switch, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 5 m length, diameter 3.9 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Operating temperature: -25 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 63mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with normally open function
- Cable connection, 3-wire, 5 meters length
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and waste
- Durable brass housing extends product life reducing replacement frequency
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-08NPSZW5S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
