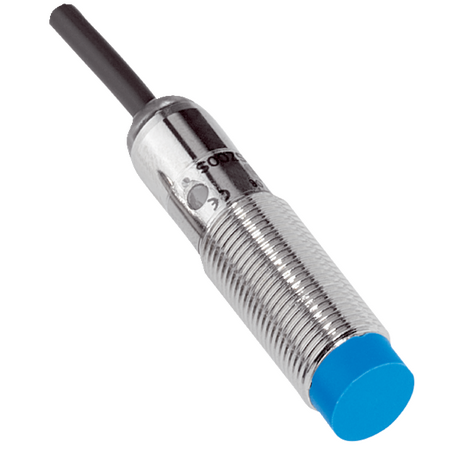

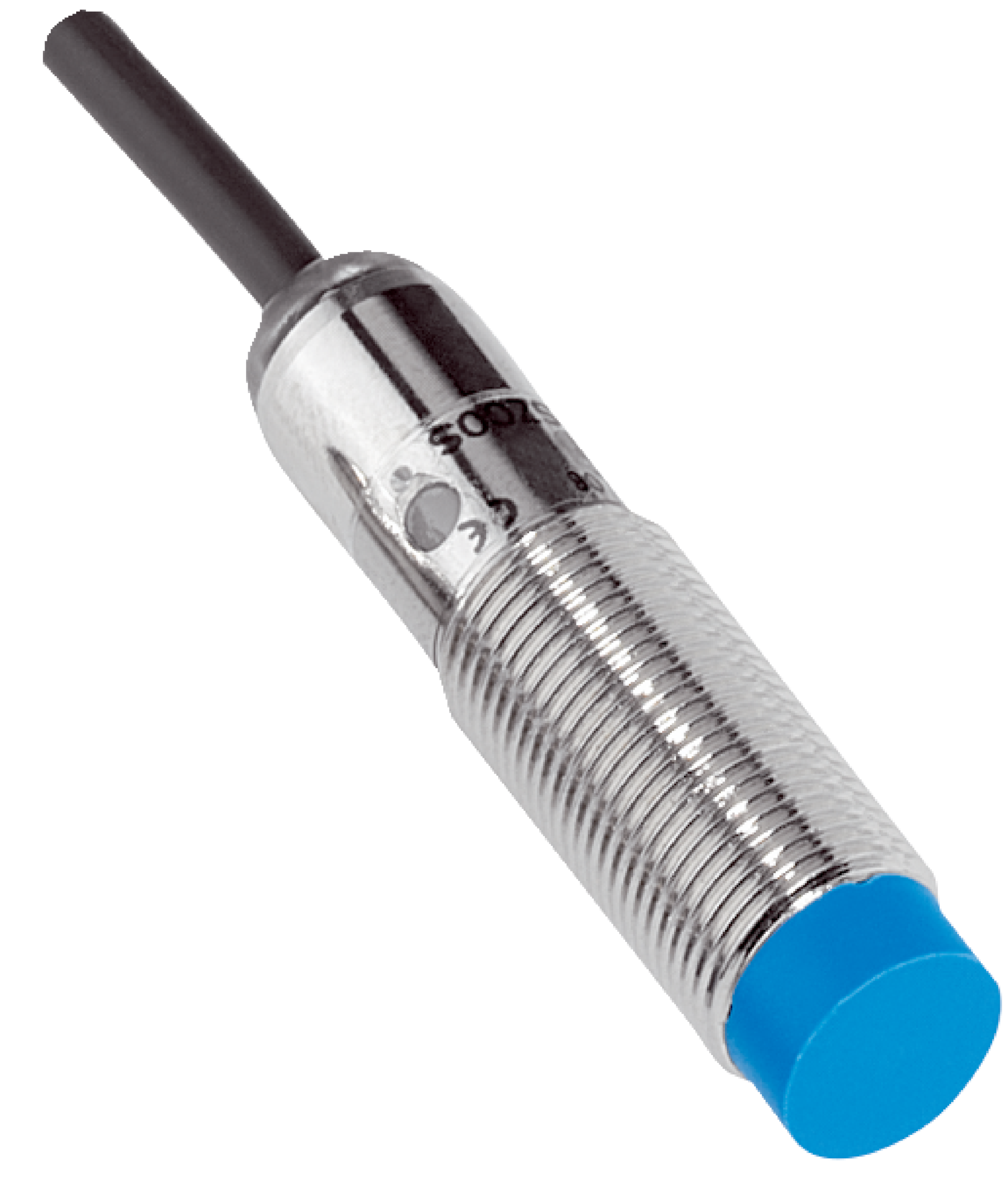

IME12-10NPOZW2K | Inductive proximity sensors
The SICK IME12-10NPOZW2K is a short-body inductive proximity sensor with M12 thread, 10 mm sensing range, and PNP normally closed output, designed for reliable industrial object detection and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME12-10NPOZW2K | Inductive proximity sensors
Brand: SICK
SKU: 1071231
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Switch, M12 Inductive Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 10 mm
- Safe sensing range Sa: 8.1 mm
- Installation type: Non-flush
- Switching frequency: 400 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 44 mm
- Thread length: 24 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 44mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Non-flush installation type with 10 mm sensing range
- PNP normally closed output with 3-wire DC electrical wiring
- High switching frequency of 400 Hz
- IP67 rated enclosure for dust and water protection
- Triple sensing range for versatile detection
- Shock and vibration resistant up to 30 g
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and mounting according to manufacturer guidelines and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring reliable proximity sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance
- Durable IP67 housing extends product life and reduces waste
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-10NPOZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications.
