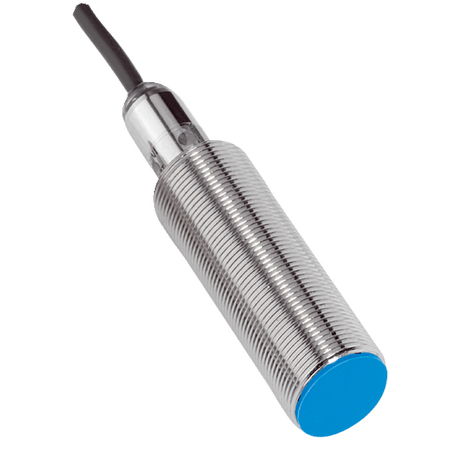

IME18-05BNOZW2S | Inductive proximity sensors
The SICK IME18-05BNOZW2S is a robust inductive proximity sensor with M18 thread, 5 mm sensing range, and IP67 protection, ideal for industrial automation and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-05BNOZW2S | Inductive proximity sensors
Brand: SICK
SKU: 1040948
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, SICK Proximity Sensor 5mm, NPN Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Switching output: NPN, normally closed
- Switching frequency: 1,000 Hz
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +75°C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- Enclosure rating: IP67
- Dimensions (H x L x W): 67mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design with M18 x 1 thread size
- Sensing range of 5 mm with safe sensing range of 4.05 mm
- Flush installation type
- High switching frequency of 1,000 Hz
- NPN normally closed switching output
- Cable connection, 3-wire, 2 meters long
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature from -25°C to +75°C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-05BNOZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
