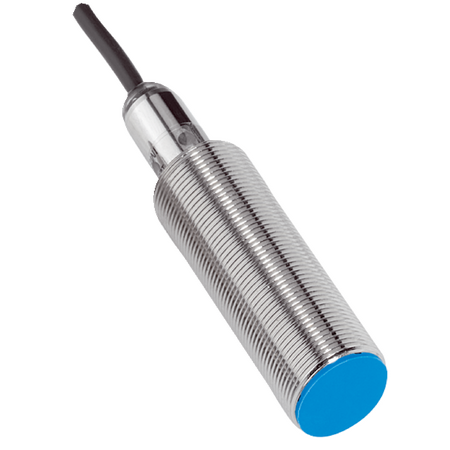

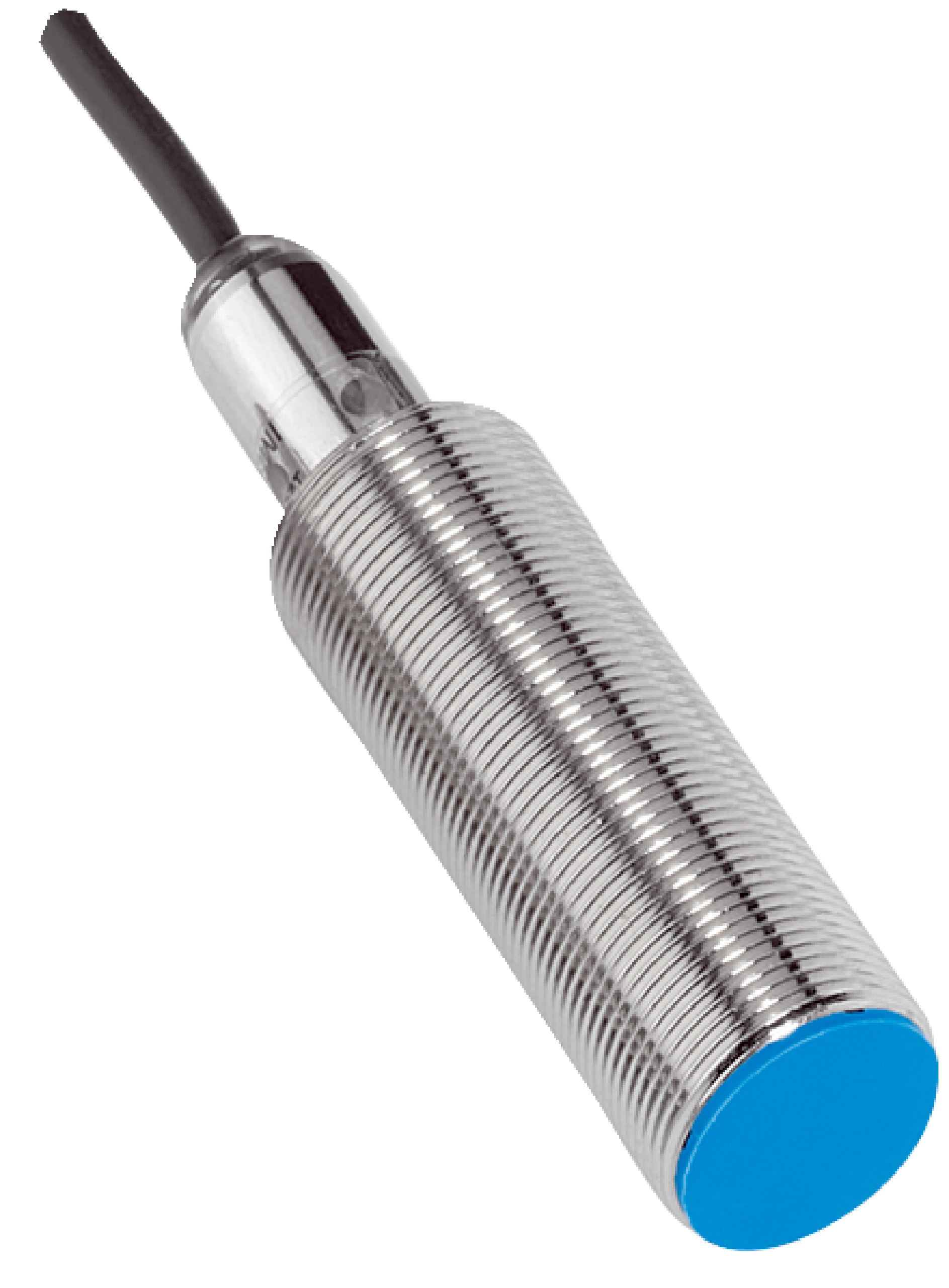

IME18-05BPOZW2S | Inductive proximity sensors
The SICK IME18-05BPOZW2S is a robust inductive proximity sensor with a 5 mm sensing range, designed for flush mounting in industrial automation applications. It features a durable brass housing, IP67 protection, and high switching frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-05BPOZW2S | Inductive proximity sensors
Brand: SICK
SKU: 1040940
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, SICK Proximity Sensor 5mm, M18 Inductive Sensor
Technical Specifications
- Housing: Brass, nickel-plated
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range (Sn): 5 mm
- Safe sensing range (Sa): 4.05 mm
- Installation type: Flush
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m length
- Switching output: PNP, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Sensing face material: Plastic PA 66
- Housing length: 67 mm
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 67mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard M18 x 1 threaded brass nickel-plated housing
- Flush installation type with 5 mm sensing range
- High switching frequency of 1,000 Hz
- PNP normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Supplied with two brass nickel-plated mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-05BPOZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
