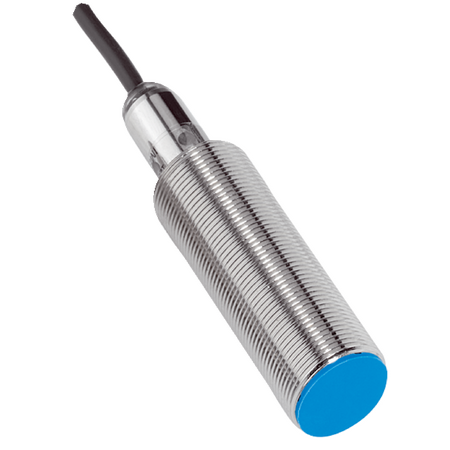

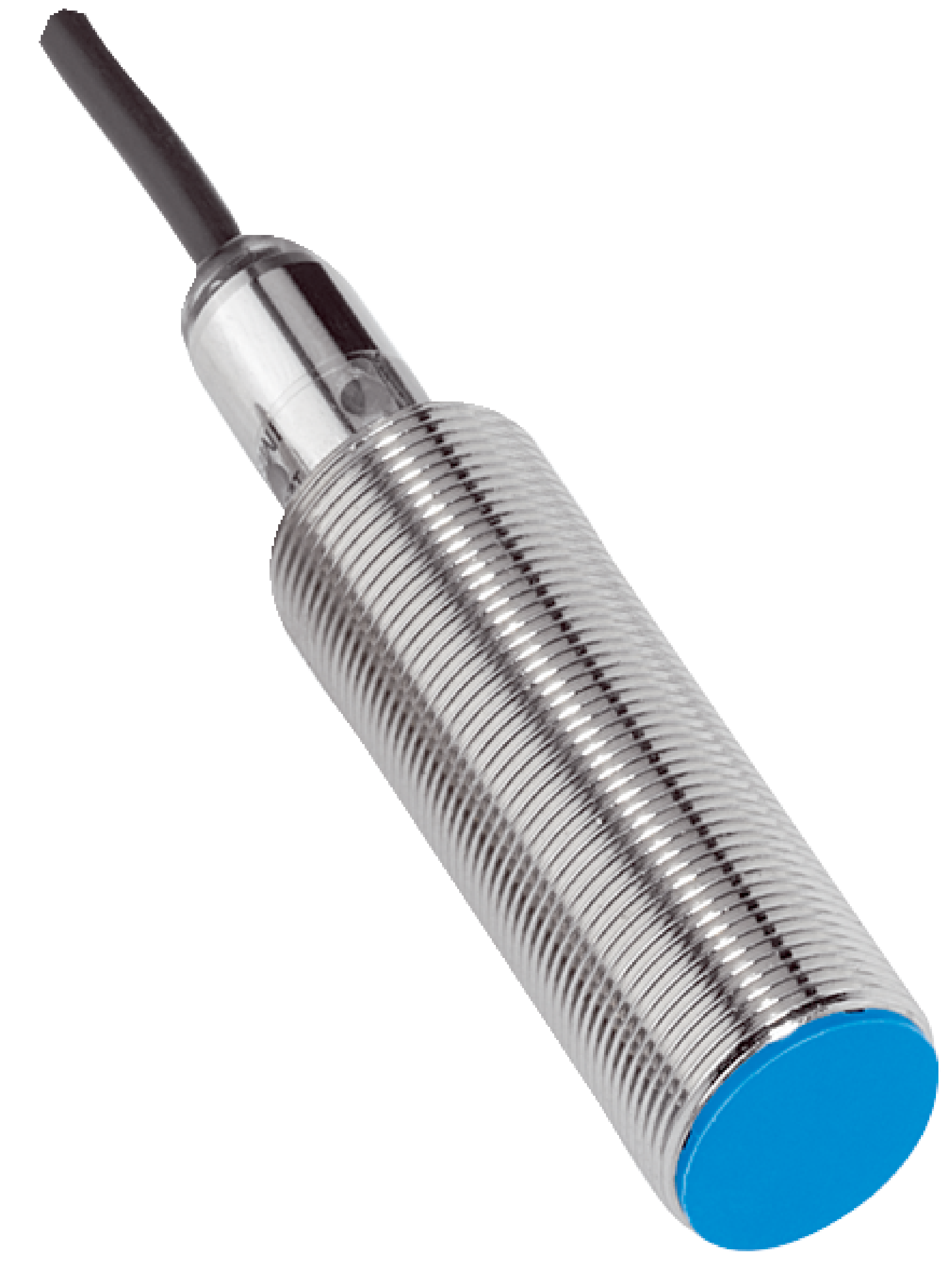

IME18-05BPSZW6S | Inductive proximity sensors
The SICK IME18-05BPSZW6S is an inductive proximity sensor with a 5 mm sensing range, designed for flush installation in industrial automation applications. It features a robust brass housing, IP67 rating, and high switching frequency for reliable metal object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-05BPSZW6S | Inductive proximity sensors
Brand: SICK
SKU: 1044903
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, SICK Proximity Switch, Metal Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm, conductor size 0.25 mm²
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 67mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 5 mm with safe sensing range of 4.05 mm
- Flush installation type with IP67 enclosure rating
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- Cable connection type, 3-wire, 10 m length
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure proper flush mounting and electrical connections.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Durable materials and long service life reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-05BPSZW6S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
