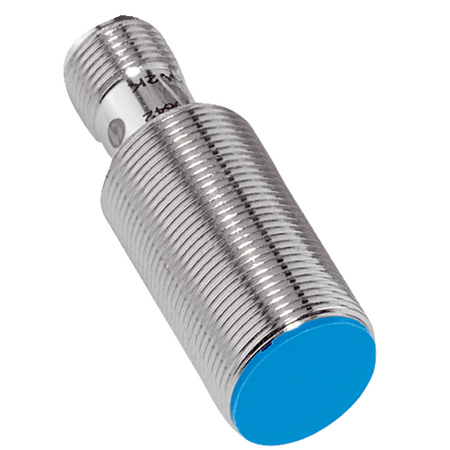

IME18-08BNOZC0K | Inductive proximity sensors
The SICK IME18-08BNOZC0K is a robust inductive proximity sensor with an 8 mm sensing range, designed for flush mounting in industrial automation applications. It features a short-body brass housing, IP67 protection, and high switching frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-08BNOZC0K | Inductive proximity sensors
Brand: SICK
SKU: 1040977
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Sensor, NPN Proximity Switch, Flush Mount Proximity Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Installation type: Flush
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Sensing face material: Plastic PA 66
- Housing length: 50 mm
- Thread length: 33 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Flush installation type with 8 mm sensing range
- High switching frequency of 1,000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide supply voltage range from 10 V DC to 30 V DC
- Short-circuit and power-up pulse protection included
- Mounting nuts included for easy installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in conveyor systems
- Safety and control systems in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME18-08BNOZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
