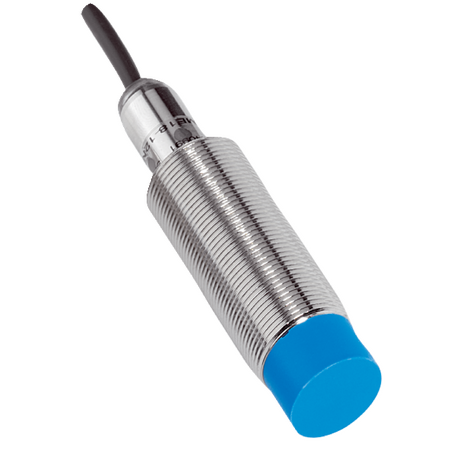

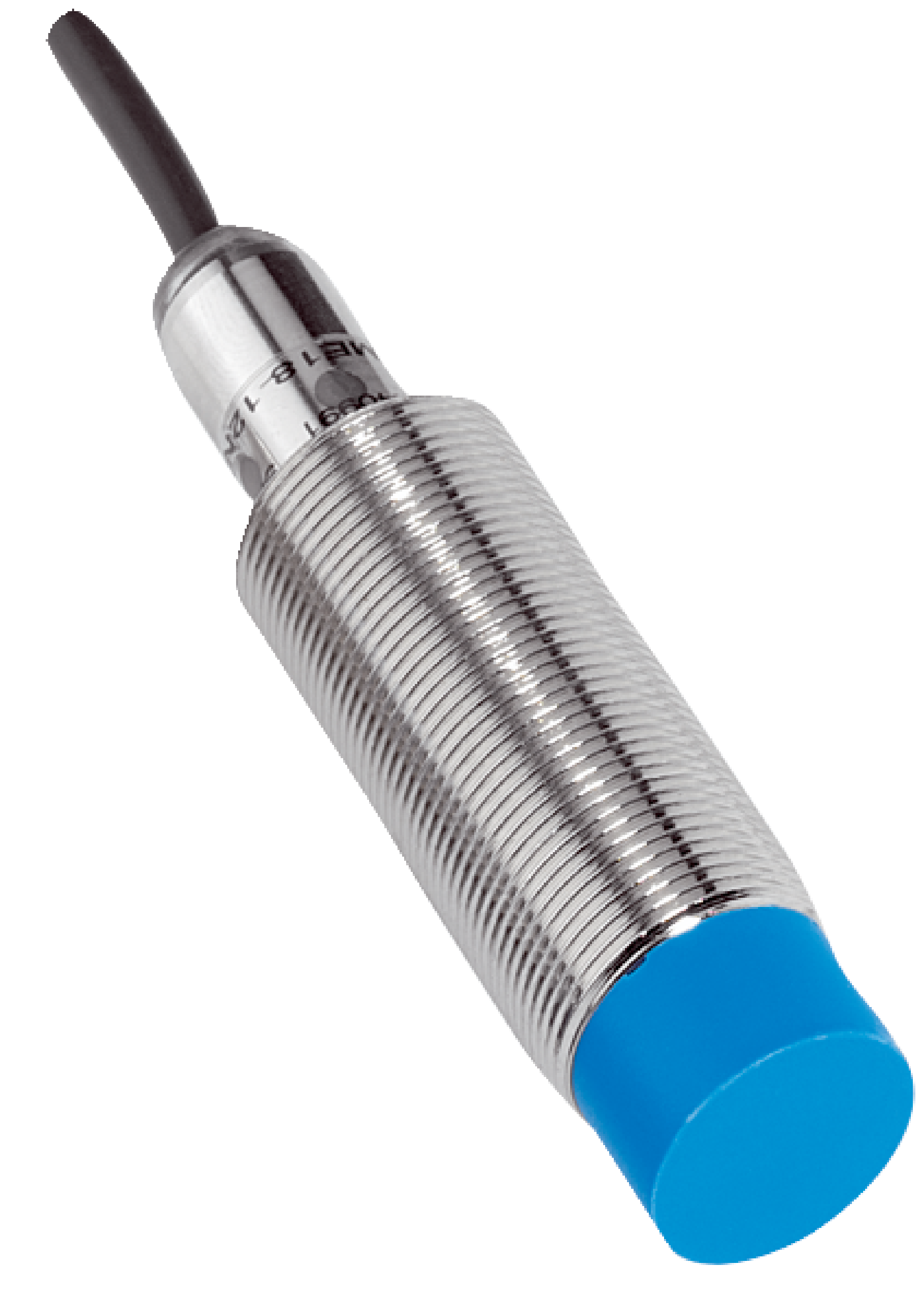

IME18-08NPSZW5S | Inductive proximity sensors
The SICK IME18-08NPSZW5S is an inductive proximity sensor featuring an 8 mm sensing range, robust brass nickel-plated housing, and IP67 protection, ideal for industrial automation and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-08NPSZW5S | Inductive proximity sensors
Brand: SICK
SKU: 1046875
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Sensor, 8mm Proximity Switch, PNP Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 1,000 Hz
- Output: PNP, Normally Open (NO)
- Current rating: Continuous current ≤ 200 mA, No load current ≤ 10 mA
- Cable: 3-wire PVC, 5 m length, 0.25 mm² conductor size
- Protection: Short-circuit and power-up pulse protection
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Dimensions (H x L x W): 18mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard M18 x 1 threaded brass housing with nickel plating
- Non-flush installation type with 8 mm sensing range
- High switching frequency up to 1,000 Hz
- PNP normally open output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connections according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable construction extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-08NPSZW5S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
