IME18-12BNSZC0S | Inductive proximity sensors

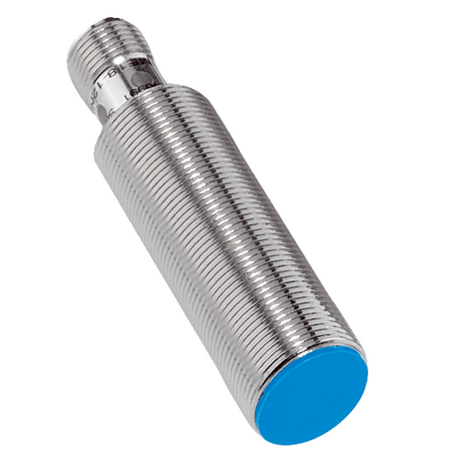

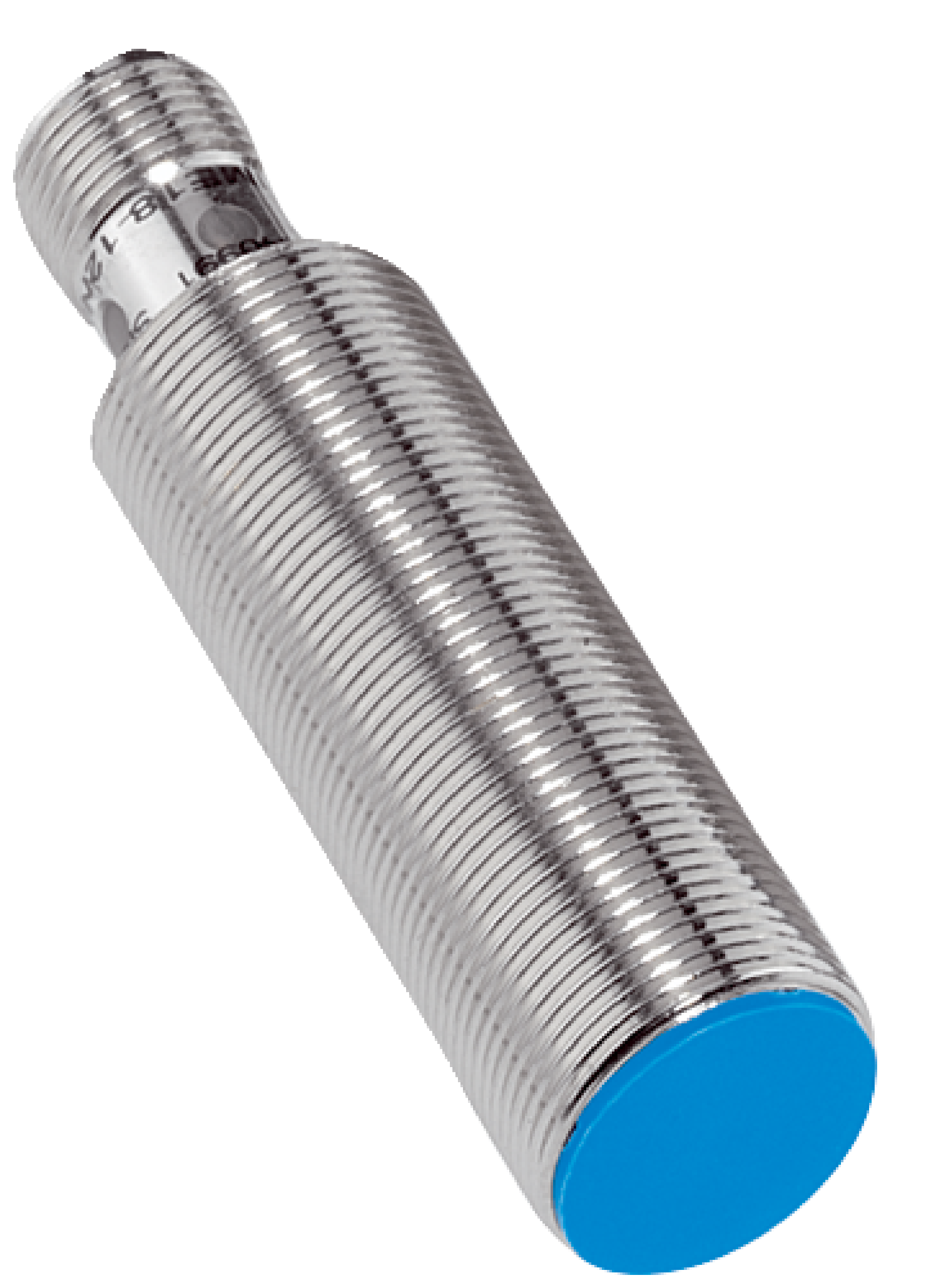

The SICK IME18-12BNSZC0S is an inductive proximity sensor with a 12 mm sensing range, housed in a robust M18 threaded brass nickel-plated casing, ideal for industrial automation and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-12BNSZC0S | Inductive proximity sensors
Brand: SICK
SKU: 1071262
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Sensor, Metal Proximity Switch, NPN Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 500 Hz
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Ambient operating temperature: -25°C to +75°C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Connection type: Male connector M12, 4-pin
- Thread size: M18 x 1
- Housing length: 69 mm
- Thread length: 52 mm
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard M18 x 1 threaded brass nickel-plated housing
- 12 mm sensing range with triple sensing range feature
- Quasi-flush installation type
- High switching frequency of 500 Hz
- NPN normally open (NO) switching output
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in conveyor systems
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 housing extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-12BNSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
