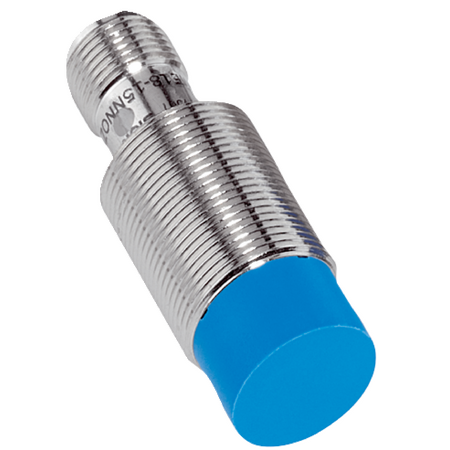

IME18-12NNOZC0K | Inductive proximity sensors

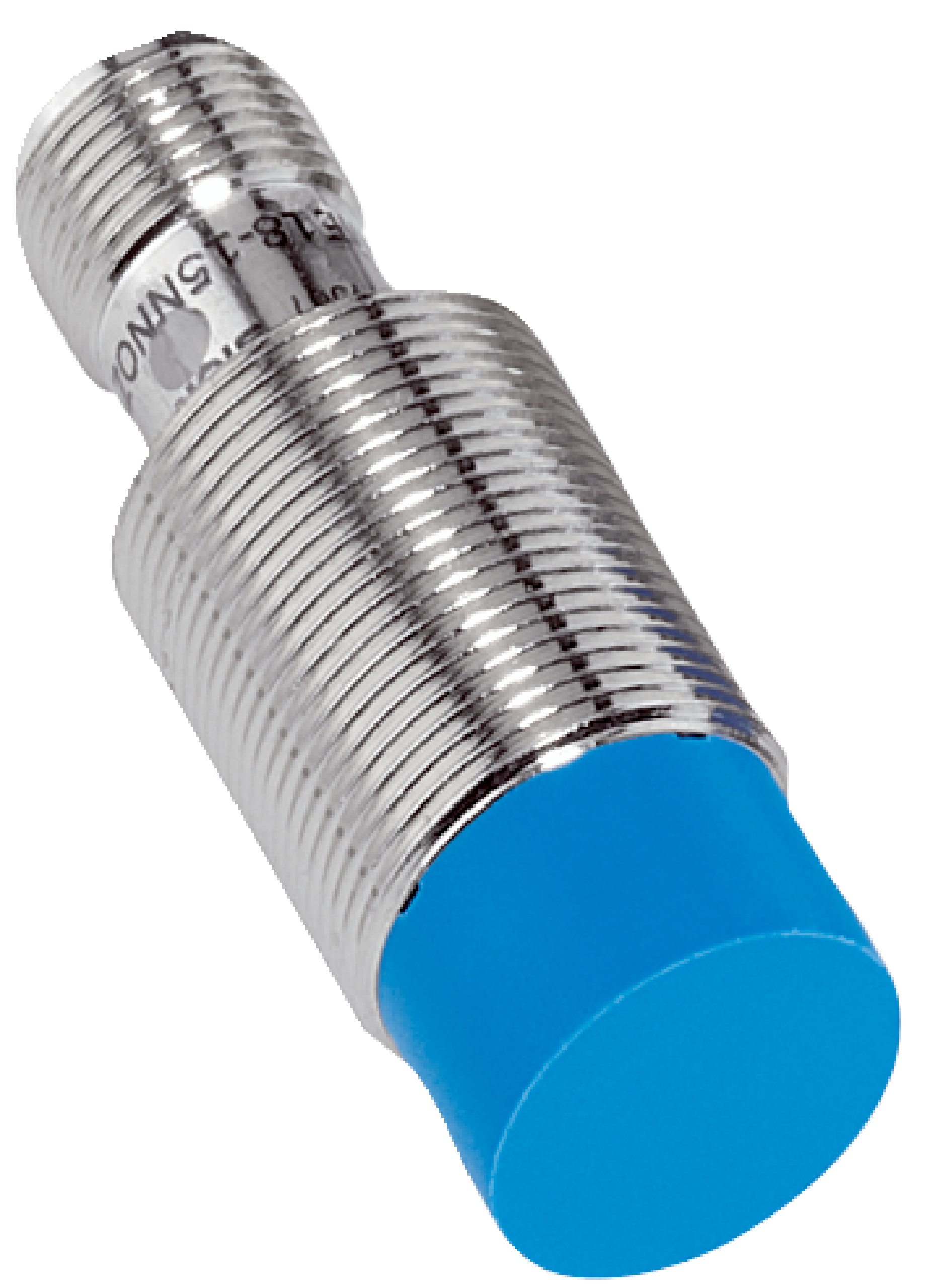

The SICK IME18-12NNOZC0K is a short-body M18 inductive proximity sensor with a 12 mm sensing range, designed for reliable non-flush metal object detection in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-12NNOZC0K | Inductive proximity sensors
Brand: SICK
SKU: 1040993
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, NPN NC Proximity Switch, Non-flush Inductive Sensor
Technical Specifications
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 12 mm
- Safe sensing range Sa: 9.72 mm
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Housing length: 50 mm
- Thread length: 23 mm
- Tightening torque max: ≤ 40 Nm
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body M18 housing with brass, nickel-plated material
- Non-flush installation type with 12 mm sensing range
- NPN normally closed (NC) output with DC 3-wire electrical wiring
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME18-12NNOZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
