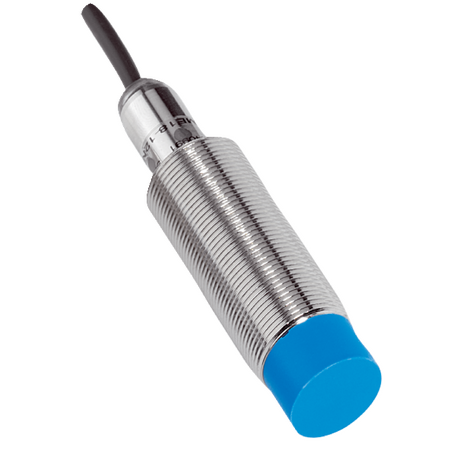

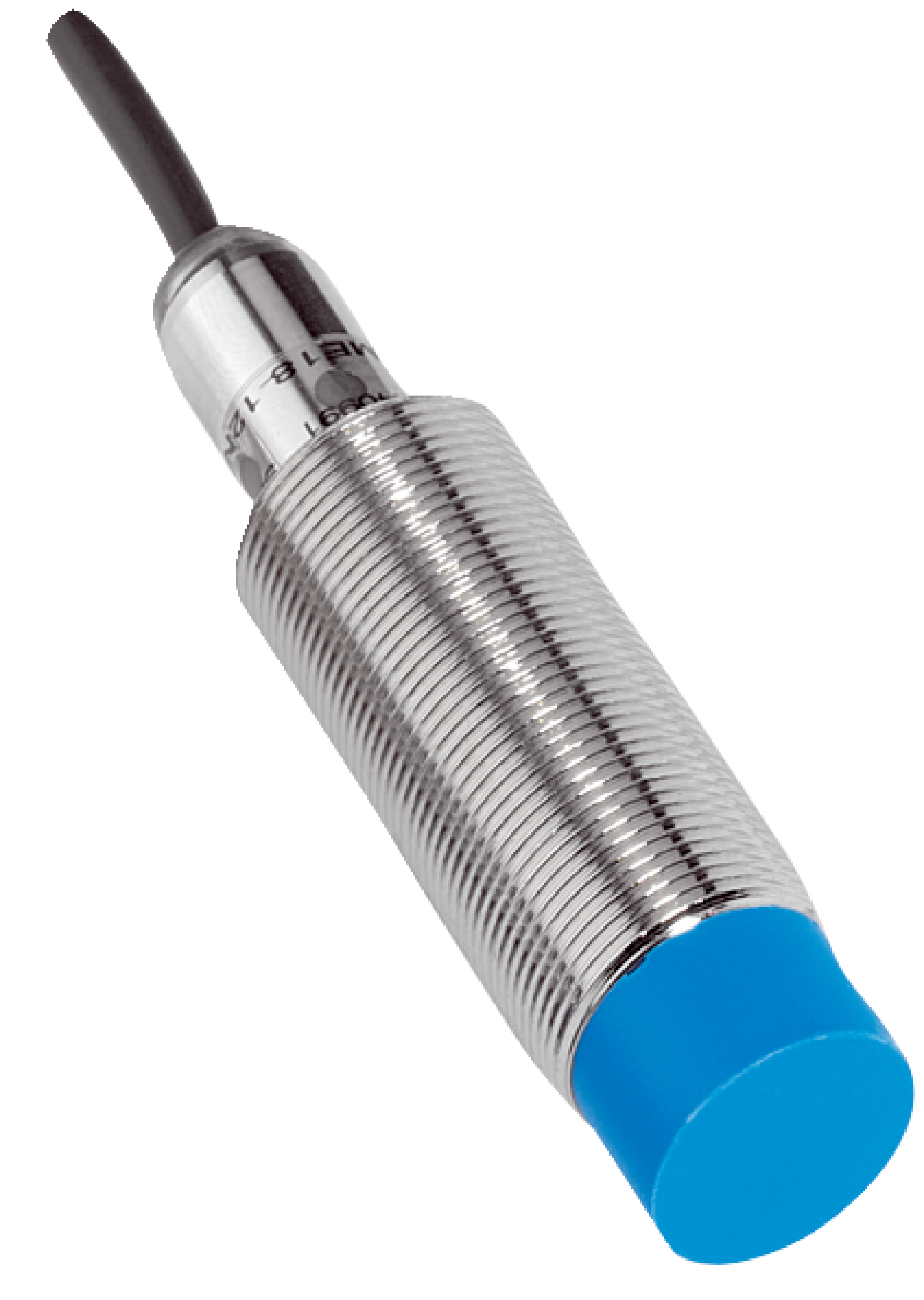

IME18-12NNOZW2S | Inductive proximity sensors
The SICK IME18-12NNOZW2S is an inductive proximity sensor with a 12 mm sensing range, M18 threaded brass housing, and NPN normally closed output, designed for reliable non-flush industrial object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-12NNOZW2S | Inductive proximity sensors
Brand: SICK
SKU: 1040996
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, NPN NC Proximity Switch, Non-flush Inductive Sensor
Technical Specifications
- Housing: Brass, nickel-plated
- Thread size: M18 x 1
- Sensing range Sn: 12 mm
- Safe sensing range Sa: 9.72 mm
- Installation type: Non-flush
- Switching frequency: 1000 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: NPN, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: Ø 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +75°C
- Housing length: 67 mm
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 67mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard M18 x 1 threaded brass housing with nickel plating
- Non-flush installation type with 12 mm sensing range
- High switching frequency of 1000 Hz for fast response
- NPN normally closed (NC) switching output
- Cable connection with 3-wire, 2 m PVC cable
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Wide operating temperature range from -25°C to +75°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and mounting according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in conveyor systems
- Non-contact switching in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-12NNOZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
