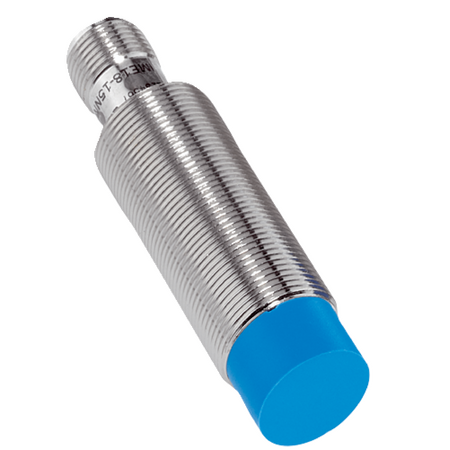

IME18-12NPSZC0SS41 | Inductive proximity sensors
The SICK IME18-12NPSZC0SS41 is a robust M18 inductive proximity sensor with a 12 mm sensing range, designed for reliable non-flush metal object detection in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-12NPSZC0SS41 | Inductive proximity sensors
Brand: SICK
SKU: 1145778
Alternatively Known As: M18 Inductive Proximity Sensor, IME18 Proximity Sensor, SICK Proximity Sensor M18, Non-flush Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 1,000 Hz
- Switching output: PNP normally open (NO)
- Connection type: Male M12 4-pin connector
- Enclosure rating: IP67
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M18 x 1
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- Operating temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard M18 x 1 threaded brass nickel-plated housing
- Non-flush installation type with 12 mm sensing range
- High switching frequency of 1,000 Hz for fast response
- PNP normally open (NO) switching output with DC 3-wire wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with inductive sensor wiring and mounting to ensure proper operation and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in conveyor systems
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-12NPSZC0SS41 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
