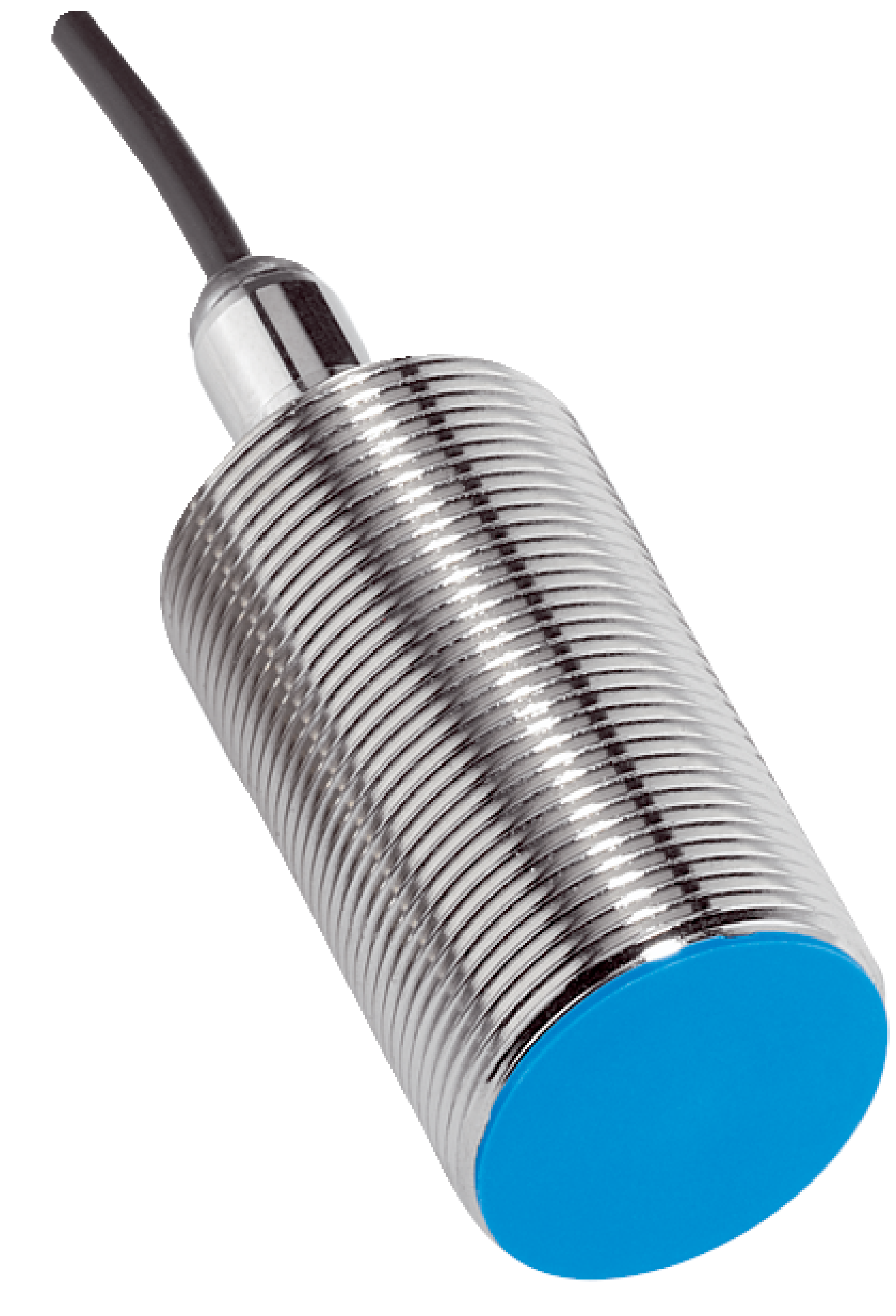

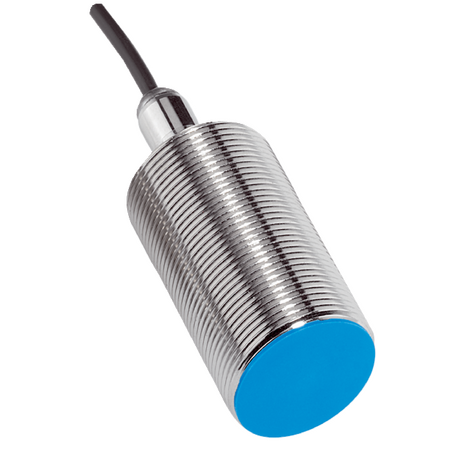

IME30-10BNOZW2S | Inductive proximity sensors
The SICK IME30-10BNOZW2S is a robust inductive proximity sensor with a 10 mm sensing range, designed for flush mounting in industrial automation applications. It features a durable brass housing, IP67 protection, and reliable NPN output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-10BNOZW2S | Inductive proximity sensors
Brand: SICK
SKU: 1041012
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, NPN Inductive Sensor, Flush Mount Proximity Switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, 0.25 mm² conductor size, 3.9 mm diameter
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Switching output: NPN, normally closed
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design with M30 x 1.5 thread size
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Flush installation type
- Switching frequency up to 500 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Includes two brass, nickel-plated mounting nuts
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance
- Durable materials extend product lifespan, reducing waste
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME30-10BNOZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
