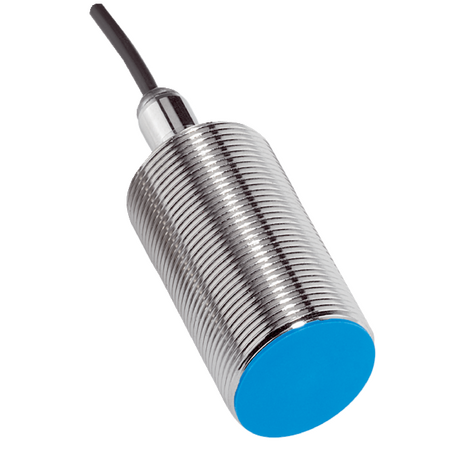

IME30-15BPOZW2S | Inductive proximity sensors
The SICK IME30-15BPOZW2S is an inductive proximity sensor with a 15 mm sensing range, designed for flush installation in industrial automation applications. It features robust brass housing, IP67 protection, and high switching frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-15BPOZW2S | Inductive proximity sensors
Brand: SICK
SKU: 1041036
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Proximity Sensor 15mm, M30 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm, conductor size 0.25 mm²
- Switching output: PNP, normally closed (NC)
- Switching frequency: 500 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M30 x 1.5
- Housing length: 70 mm
- Thread length: 54 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Flush installation type
- High switching frequency of 500 Hz
- PNP switching output with NC output function
- Cable connection type: 3-wire, 2 m length
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable materials extend product life and reduce replacement frequency
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-15BPOZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
