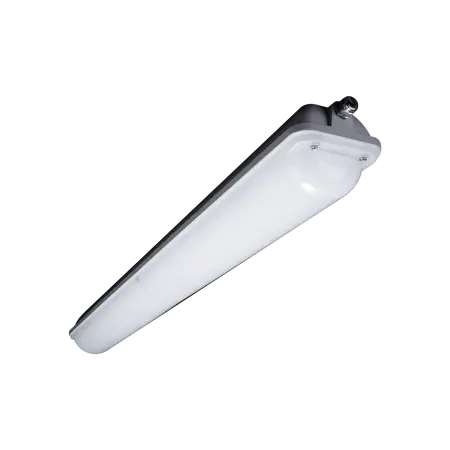

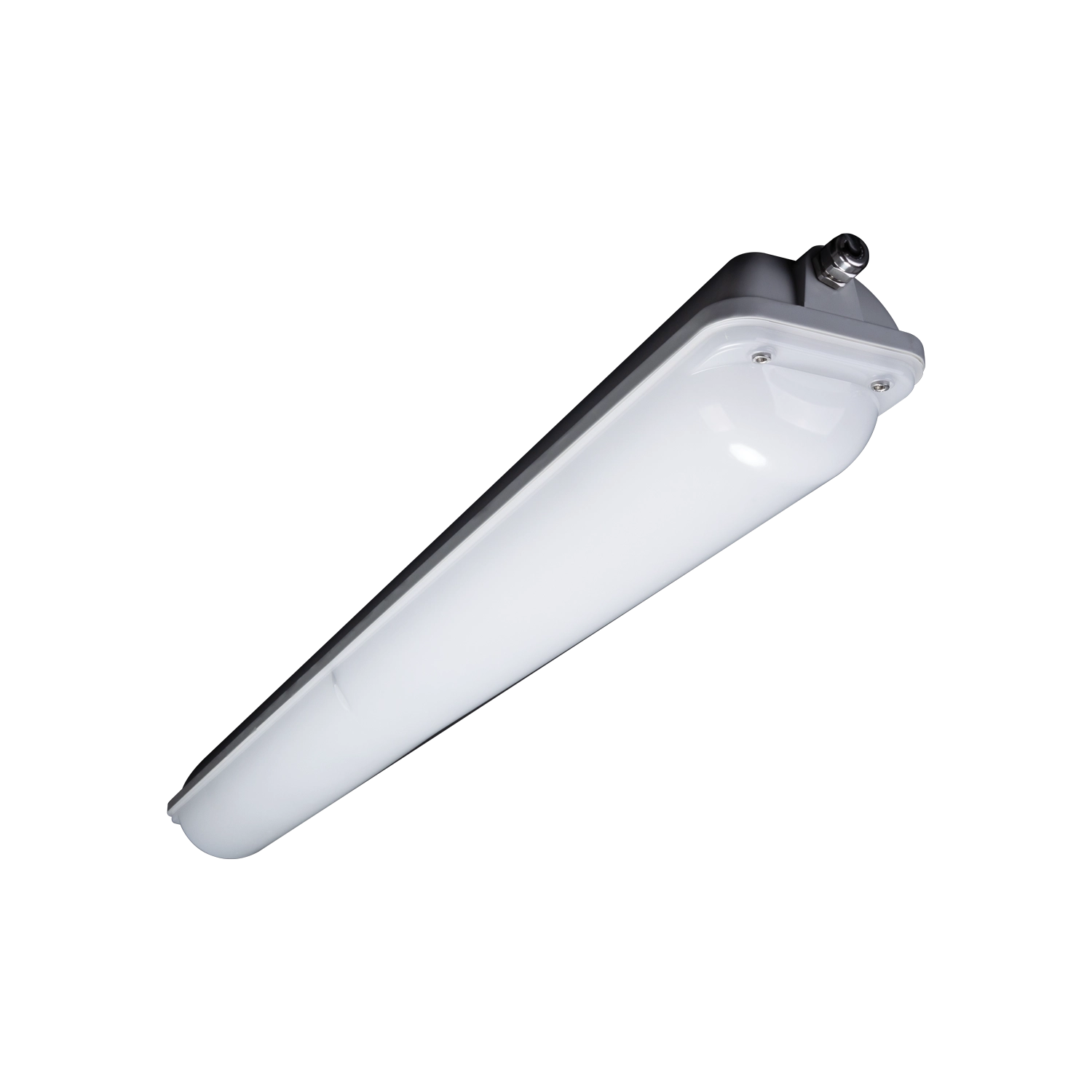

Impact-120 Emergency LED Batten 40W IP66 IK10 Dim Sensor Domus
Domus Impact-120 emergency LED batten, 1200mm, 40W, IP66, IK10, dim sensor.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IMPACT-120 Emergency Batten, Emergency Weatherproof LED Batten, Emergency LED Aluminium Batten, 1200mm LED Batten
Technical Specifications
- Model: IMPACT-120-EM
- Variant: Dim Sensor, Item No. 66166
- Input Voltage: 240V AC
- Power: 20W/40W selectable; 40W maximum output
- Lumen Output: 4800lm at 3000K; 5000lm at 4000K and 5000K
- Colour Temperature: 3000K, 4000K or 5000K selectable
- CRI: ≥80
- LED Type: SMD
- Beam Angle: 120°
- Dimming: No; dim sensor included
- Emergency Operation: Maintained or non-maintained
- Battery Type: LiFePO4
- Battery Rating: 3.2V, 3.2Ah
- Charge Time: 24 hours
- Emergency Duration: 3 hours
- Emergency Classification: C0: D50, C90: D32
- Ingress Protection: IP66
- Impact Protection: IK10
- Lifespan: 50,000 hours
- Body and Diffuser: High-impact aluminium body with opal polycarbonate diffuser
- Remote Control: SENSOR-INT-01-REM remote control required for sensor adjustment
- Dimensions (H x L x W): 115mm x 1306mm x 137mm
- Weight: 3.2 kg
Key Features
- 40W emergency LED batten for 1200mm installations
- Integrated dim sensor variant
- Selectable 3000K, 4000K and 5000K colour temperature
- 3-hour emergency duration with LiFePO4 battery
- IP66 weatherproof construction
- IK10 vandal and impact resistance
- High-impact aluminium housing with opal polycarbonate diffuser
- Suitable for indoor and outdoor commercial environments
- Direct replacement for traditional T8 and T5 fluorescent battens
- Replaceable LED module and included waterproof cable gland
Professional Installation Requirements
- Installation and commissioning must be performed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable emergency-lighting requirements. Emergency lighting systems should be designed, installed and maintained in accordance with the AS/NZS 2293 series.
Applications
- Commercial and industrial buildings
- Basements and service corridors
- Plant rooms and utility areas
- Railway and bus terminals
- Schools, factories and warehouses
- Tunnels and correctional facilities
- Outdoor commercial public areas requiring weatherproof emergency lighting
Standards & Compliance
- Manufacturer states compliance with AS/NZS 2293 for emergency lighting equipment
- Applicable emergency luminaire requirements are covered by AS/NZS 2293.3, with system design, installation and operation addressed by AS/NZS 2293.1
Environmental Benefits
- LED technology provides lower energy consumption than equivalent fluorescent battens
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Aluminium housing is recyclable at end of service life
- Selectable wattage and colour temperature support efficient lighting specification for different applications
- LiFePO4 battery technology supports a long-life emergency power system
Warranty Information
Domus Lighting warranty policy provides a 5-year replacement warranty for emergency lighting in residential applications and a 4-year replacement warranty in commercial applications, with 4-year battery replacement coverage. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician, proof of purchase and installation in accordance with Domus instructions. Australian Consumer Law rights apply in addition.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
