Impact-120 Emergency LED Batten 40W IP66 IK10 Non-Sensor Domus

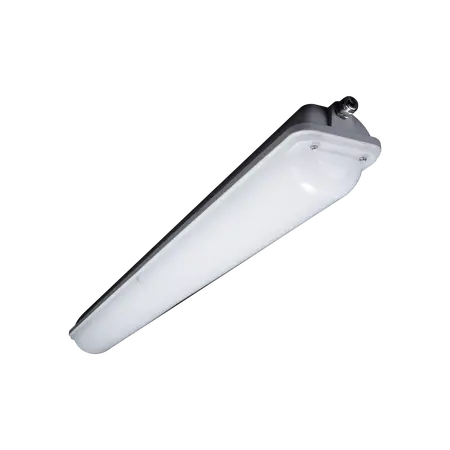

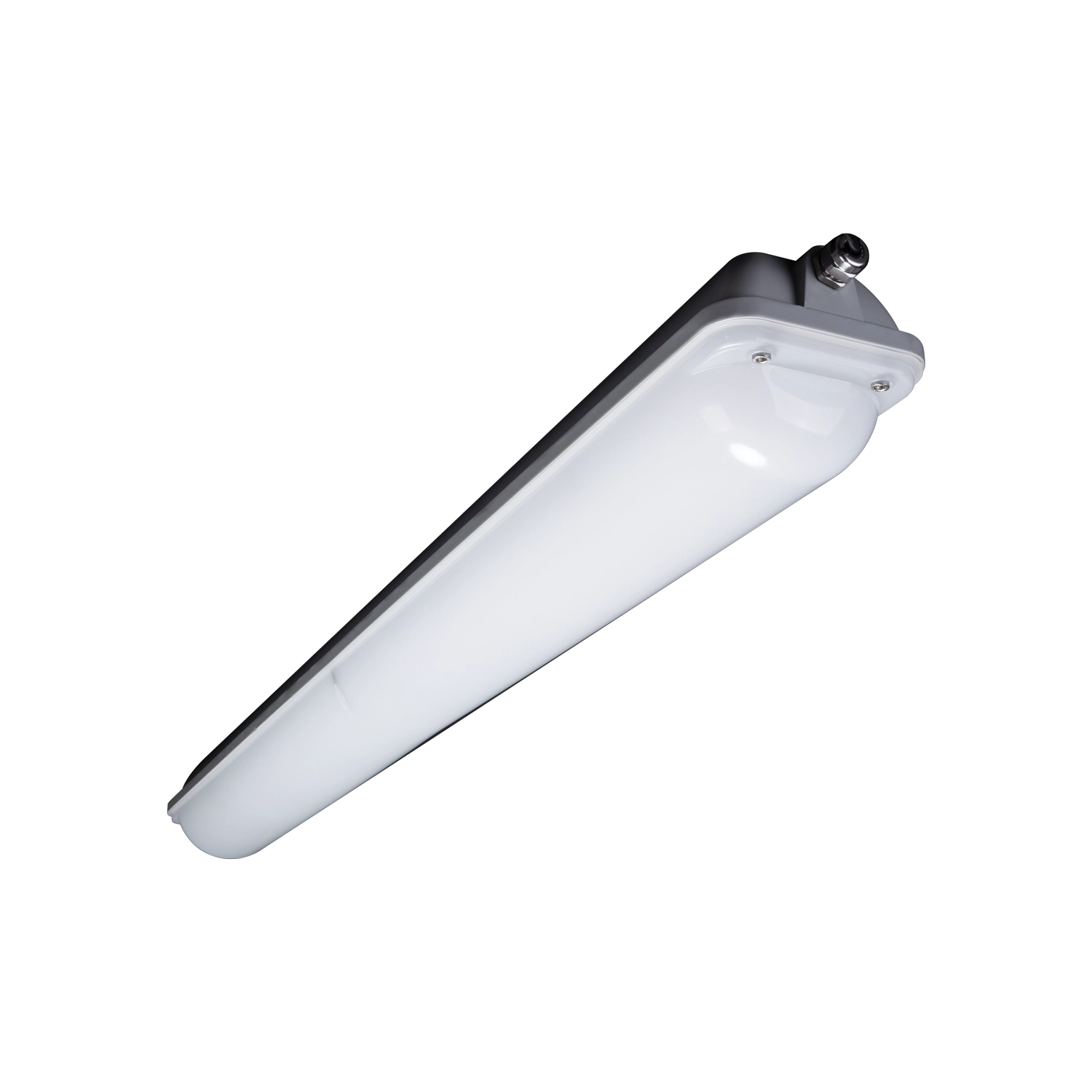

Domus Impact-120 emergency LED batten, 1200mm, 40W, IP66, IK10, non-sensor.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Impact 120 EM Emergency Batten, Weatherproof Emergency LED Batten, Vandalproof Emergency LED Batten
Technical Specifications
- Item Number: 66164
- Wattage: 20W/40W selectable
- Input Voltage: 240V AC
- Colour Temperature: 3000K/4000K/5000K selectable
- Lumen Output at 40W: 4800lm at 3000K; 5000lm at 4000K and 5000K
- Emergency Operation: Maintained or non-maintained
- Emergency Duration: 3 hours
- Battery: LiFePO4, 3.2V 3.2Ah
- Battery Charge Time: 24 hours
- Ingress Protection: IP66
- Impact Protection: IK10
- Beam Angle: 120°
- Colour Rendering Index: CRI ≥80
- LED Type: SMD
- Rated Lifespan: 50,000 hours
- Dimming: No
- Housing: High-impact aluminium with opal polycarbonate diffuser
- Emergency Classification: C0 D50, C90 D32
- Weight Basis: Estimated; manufacturer does not publish product weight
- Dimensions (H x L x W): 137mm x 1306mm x 115mm
- Weight: 2.5 kg
Key Features
- Non-sensor configuration
- Tri-colour selectable output via 3000K, 4000K and 5000K settings
- Dual 20W/40W power selection
- Three-hour emergency duration
- Maintained and non-maintained emergency modes
- IP66 weatherproof construction
- IK10 vandal-resistant construction
- High-impact aluminium housing with opal polycarbonate diffuser
- Suitable for direct replacement of T8 and T5 fluorescent battens
- Replaceable LED module
- Includes cable glands
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the manufacturer's installation instructions, AS/NZS 3000 and applicable emergency-lighting requirements under AS/NZS 2293.
Applications
- Commercial buildings
- Industrial facilities
- Basements and service corridors
- Railway and bus terminals
- Schools and public buildings
- Factories and plant rooms
- Tunnels
- Correctional facilities
- Indoor and outdoor covered areas requiring emergency lighting
Standards & Compliance
- AS/NZS 2293 series for emergency lighting and exit signs for buildings
Environmental Benefits
- LED technology provides lower energy consumption than equivalent fluorescent battens
- Rated 50,000-hour lifespan can reduce replacement frequency and product waste
- Replaceable LED module may extend service life and reduce whole-fitting replacement
- Aluminium housing and polycarbonate diffuser can be separated for recycling at end of service life
Warranty Information
Domus Lighting warranty: 5-year replacement warranty for emergency lighting in residential applications, or 4-year replacement warranty for commercial applications. Battery replacement warranty is 4 years. Warranty eligibility requires installation by a licensed electrician and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian distributors, subject to distributor stock.
