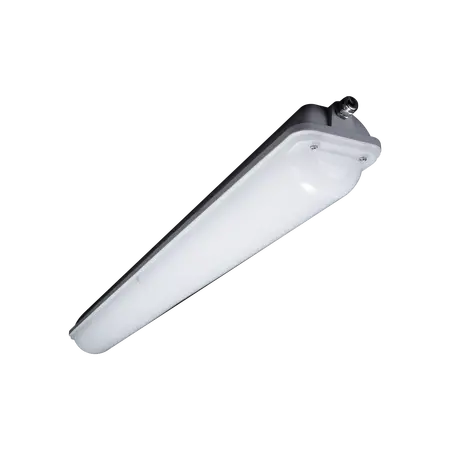

Impact-60 Emergency LED Batten 20W IP66 IK10 Dim Sensor Domus

BRAND: Domus Lighting
SKU: 66162
$396.70 List price: $529.00
+ −
30 Days Return Electricians Unlock Trade Access
Domus Impact-60 emergency LED batten, 600mm, 20W, IP66, IK10, dim sensor.

Alternatively Known As: Impact-60-EM, Domus Emergency LED Weatherproof Batten, Emergency LED Batten with Sensor

Technical Specifications
  • Input Voltage: 240V AC
  • Power: 20W
  • Lumen Output: 2200lm at 3000K; 2400lm at 4000K or 5000K
  • Colour Temperature: 3000K, 4000K or 5000K selectable
  • LED Type: SMD
  • Colour Rendering Index: ≥80
  • Beam Angle: 120°
  • Dimming: Dim sensor variant; remote control required
  • Ingress Protection: IP66
  • Impact Protection: IK10
  • Rated Lifespan: 50,000 hours
  • Battery Type: LiFePO4
  • Battery: 3.2V, 3.2Ah
  • Charge Time: 24 hours
  • Emergency Discharge Time: 3 hours
  • Emergency Operation: Maintained
  • Emergency Classification: C0: D50, C90: D32
  • Construction: Aluminium body with opal polycarbonate diffuser
  • Variant Item Number: 66162
  • Dimensions (H x L x W): 115mm x 698mm x 137mm
  • Weight: 1.5 kg
Key Features
  • 20W emergency LED batten for weatherproof and vandal-resistant applications
  • Integrated dim sensor variant with remote control requirement
  • Switchable 3000K, 4000K and 5000K colour temperature
  • IP66 protection for indoor and outdoor covered applications
  • IK10 impact resistance for public, industrial and high-traffic areas
  • Maintained emergency operation with three-hour battery discharge
  • High-efficiency LED replacement for traditional T8 and T5 fluorescent battens
  • Suitable for basements, service corridors, plant rooms, schools, factories, transport terminals and tunnels
Professional Installation Requirements
  • Installation and connection to 240V mains must be completed by a licensed electrician in accordance with the manufacturer's instructions and applicable wiring requirements. Emergency lighting installation, testing and commissioning should follow AS/NZS 2293.
Applications
  • Commercial and industrial emergency lighting
  • Underground basements and service corridors
  • Plant rooms, factories and tunnels
  • Schools, railway terminals and bus terminals
  • Correctional facilities and other vandal-resistant public areas
  • Indoor and outdoor covered areas requiring IP66-rated lighting
Standards & Compliance
  • AS/NZS 2293 for emergency luminaires and emergency lighting systems
Environmental Benefits
  • LED technology provides lower energy consumption than traditional fluorescent battens at comparable lighting output
  • 50,000-hour rated lifespan can reduce replacement frequency and material waste
  • Aluminium construction is durable and recyclable at end of service life
  • Selectable colour temperature and sensor functionality can help avoid unnecessary lighting energy use
Warranty Information

Domus Lighting commercial emergency lighting warranty: 4-year replacement warranty, including 4-year battery replacement coverage. Warranty conditions require installation by a licensed electrician and compliance with installation instructions.

Available Now

Available through Domus Lighting and authorised Australian electrical and lighting distributors.
