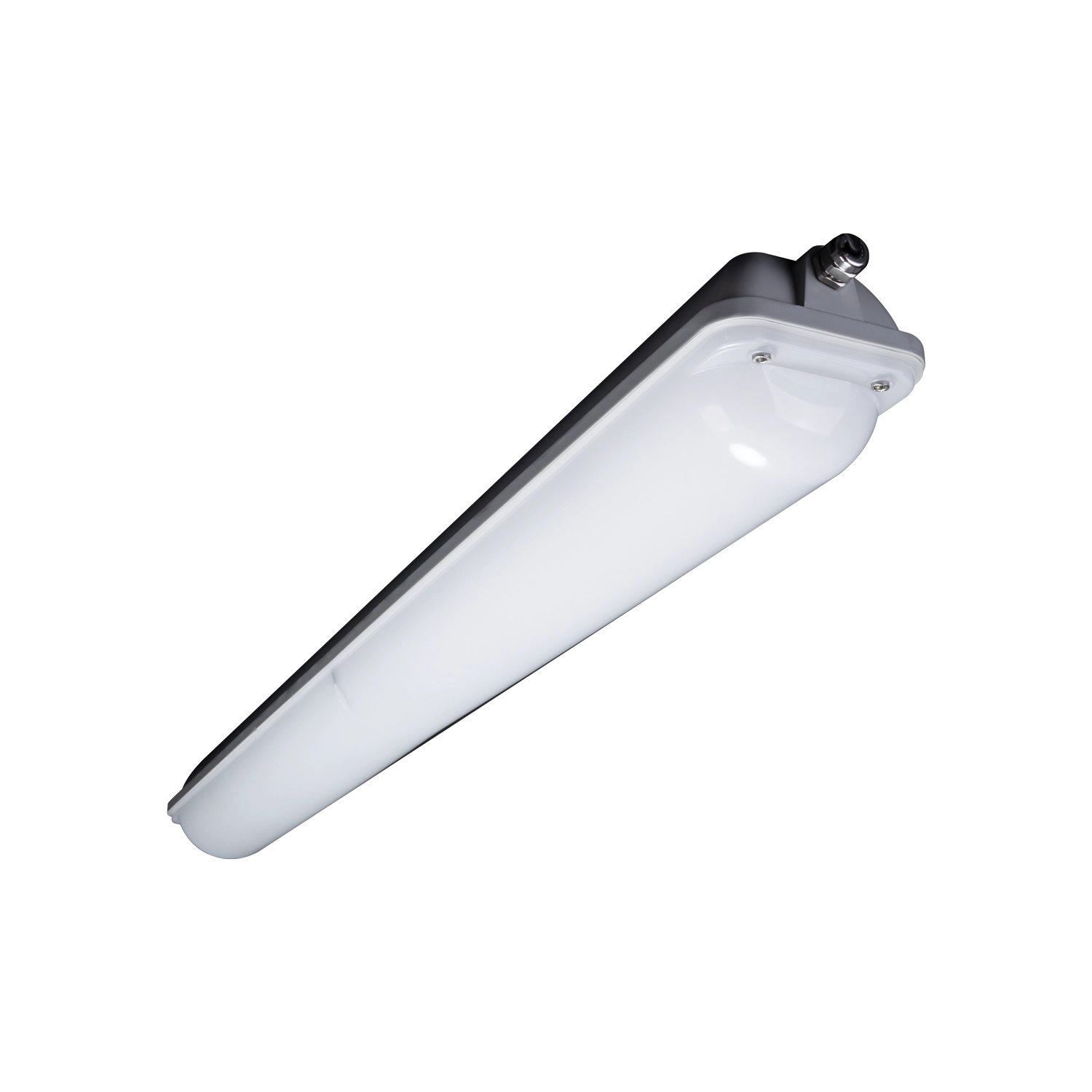

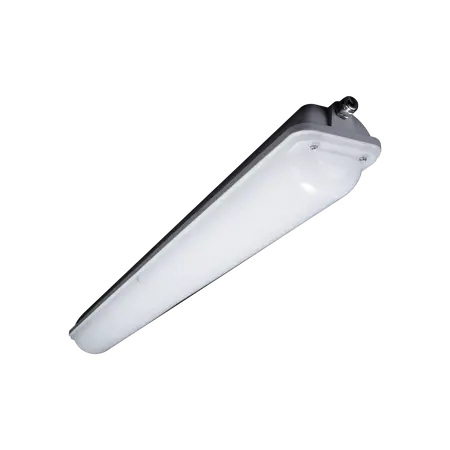

Impact-60 Emergency LED Batten 20W IP66 IK10 Non-Sensor Domus
Domus Impact-60 emergency LED batten, 600mm, 20W, IP66, IK10, non-sensor.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Impact-60-EM Emergency LED Batten, Weatherproof Emergency LED Batten, Vandal-Resistant Emergency Batten
Technical Specifications
- Model: IMPACT-60-EM
- Item Number: 66160
- Input Voltage: 240V AC
- Power: 10W/20W selectable
- Lumen Output at 20W: 2200lm at 3000K, 2400lm at 4000K, 2400lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K switchable
- LED Type: SMD
- Colour Rendering Index: ≥80
- Beam Angle: 120°
- Ingress Protection: IP66
- Impact Protection: IK10
- Dimming: No
- Emergency Type: Maintained
- Emergency Battery: LiFePO4, 3.2V 3.2Ah
- Emergency Discharge Duration: 3 hours
- Battery Charge Time: 24 hours
- Emergency Classification: C0: D50, C90: D32
- LED Lifespan: 50,000 hours
- Sensor: Non-sensor variant
- Dimensions (H x L x W): 115mm x 698mm x 137mm
- Weight: 1.8 kg
Key Features
- Maintained emergency operation with a 3-hour discharge duration
- Tri-colour switchable output: 3000K, 4000K and 5000K
- Dual wattage selection between 10W and 20W
- IP66-rated construction for dust protection and water resistance
- IK10-rated high-impact and vandal-resistant housing
- High-impact resistant aluminium body with opal polycarbonate diffuser
- Suitable for indoor and outdoor public-area applications
- Includes waterproof gland for weatherproof installation
Professional Installation Requirements
- Installation and connection to the 240V AC supply must be performed by a licensed electrician in accordance with AS/NZS 3000 and the emergency-lighting installation requirements of AS/NZS 2293.1. Emergency lighting systems must be tested and maintained in accordance with applicable regulations and site requirements.
Applications
- Commercial and industrial buildings
- Underground basements and service corridors
- Plant rooms and utility areas
- Correctional facilities
- Railway and bus terminals
- Schools and factories
- Tunnels and other public areas requiring emergency illumination
Standards & Compliance
- AS/NZS 2293.1:2018 for emergency lighting system design, installation and operation, as specified by the manufacturer
Environmental Benefits
- LED technology provides lower energy consumption than traditional fluorescent battens
- 50,000-hour LED lifespan can reduce replacement frequency and material waste
- Aluminium housing and polycarbonate diffuser can support end-of-life material recycling
- Selectable 10W/20W output allows energy use to be matched to the required illumination level
- LiFePO4 emergency battery technology supports long service life
Warranty Information
Commercial warranty: 4-year replacement warranty for emergency lighting, including 4-year battery replacement warranty, subject to Domus Lighting warranty terms. Installation by a licensed electrician is required for warranty coverage.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
