Impact Punchdown Tool with 110 & 66 Blades | Spring-Loaded Mechanism | Adjustable Force by Ideal Electrical
Punchmaster™ II Impact Punchdown Tool features both 110 and 66 blades, ideal for terminating voice and data conductors. Built for telecommunications professionals, it offers a spring-loaded mechanism for effortless seating and cutting, along with adjustable force settings for user preference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

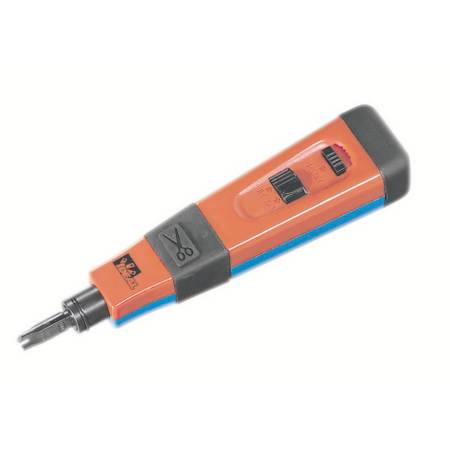

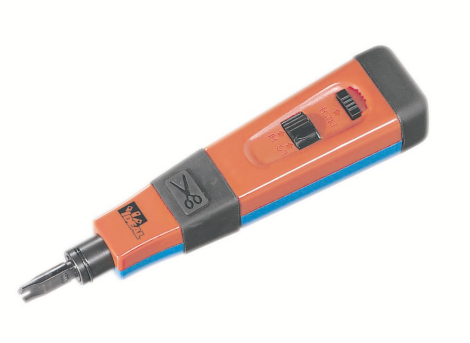

Product Name/Title: Punchmaster™ II Impact Punchdown Tool
Brand: Ideal Electrical
SKU: IDL35-485
Alternatively Known As: Impact Punchdown Tool, Network Punchdown Tool, Telecom Punchdown Tool, IDEAL Punchmaster II
Technical Specifications
- Includes 110 (networking/data) and 66 (telecommunications/voice) blades
- Spring-loaded internal mechanism delivers impact force for seating and cutting
- HI and LO settings for different termination force requirements
- Turn-Lock™ blade system for secure blade orientation
- Blade release button for easy blade changes
- Suitable for CAT3/5e/6/6A twisted pair and multi-pair telephone wires
- Dimensions (H x L x W): 180mm x 30mm x 30mm
- Weight: 0.2 kg
Key Features
- Includes both 110 and 66 full blades with cut and no-cut ends
- Spring loaded impact style termination seats and cuts wires with less effort
- Cushioned end cap and body grip reduces operator fatigue
- Adjustable high/low actuation setting for termination requirements and user preference
- Turn-Lock™ Style blade holding design keeps blade aligned and secure
- Color coded body halves identify the cut side of the installed blade
Professional Installation Requirements
- No professional installation required; designed for use by trained technicians and professionals in telecommunications and networking.
Applications
- Terminating voice and data conductors to networking and telecommunications equipment
- Seating and cutting CAT3/5e/6/6A twisted pair cable and multi-pair telephone wires
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
Limited 1 Year warranty.
Available Now
The Punchmaster™ II Impact Punchdown Tool is available now for immediate purchase. Ideal for professional telecommunications and networking installations.
