Imperial NBR 70 O-ring | 12.37 mm Internal Diameter | Temperature Resistant -30°C to 100°C | Plain Surface | @Pack of 25 | by Wurth
The Imperial NBR 70 O-ring is designed for reliable sealing in various applications, featuring a 12.37 mm internal diameter and a temperature resistance range of -30°C to 100°C. Made from durable Nitrile Butadiene Rubber, this pack of 25 is perfect for industrial and mechanical sealing, ensuring compliance with RoHS standards and dimensional tolerances according to DIN ISO 3601-1 B.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Imperial NBR 70 O-ring | 12.37 mm Internal Diameter | Temperature Resistant -30°C to 100°C | Plain Surface | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 4681237
Alternatively Known As: Imperial NBR O-ring, Nitrile Rubber O-ring, NBR sealing ring, 70 Shore A O-ring
Technical Specifications

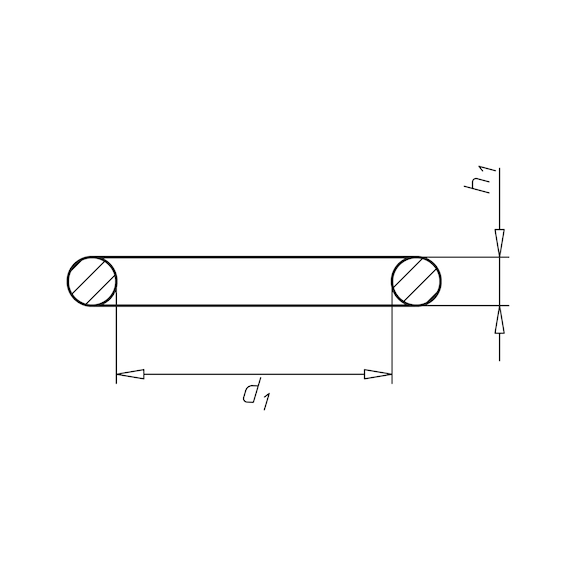

- Internal diameter: 12.37 mm
- Thickness: 2.62 mm
- Material: NBR (Nitrile Butadiene Rubber)
- Design: Imperial
- Surface: Plain
- Shore A hardness: 70 +/- 5
- Temperature resistance: -30 to 100 °C
- Dimensional tolerances: DIN ISO 3601-1 B
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3mm x 12mm x 12mm
- Weight: 0.01 kg
Key Features
- Made from NBR (Nitrile Butadiene Rubber) with Shore A hardness 70 +/- 5
- Temperature resistance from -30°C to +100°C
- Dimensional tolerances according to DIN ISO 3601-1 B
- Plain surface design
- RoHS-compliant
Professional Installation Requirements
- Ensure removal of any contamination before installation; edges and lead-in chamfers must be deburred; use lubricated/greased O-ring for installation.
Applications
- Sealing moving and stationary machine components
- Suitable for use with mineral oils, grease, petrol, hot water, steam, compressed air, and weak acids
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable material reduces frequency of replacements and waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Imperial NBR 70 O-ring 25 PCS pack is available now for immediate purchase. Ideal for industrial and mechanical sealing applications.
