Imperial NBR 70 O-ring | 9.19 mm Internal Diameter | Temperature Resistant -30°C to 100°C | Plain Surface | @Pack of 25 | by Wurth
The Imperial NBR 70 O-ring is designed for sealing moving and stationary machine components, featuring a 9.19 mm internal diameter and a temperature resistance range of -30°C to +100°C. Made from durable Nitrile Butadiene Rubber, this pack of 25 O-rings is ideal for applications involving mineral oils, grease, and compressed air, ensuring reliable performance in various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Imperial NBR 70 O-ring | 9.19 mm Internal Diameter | Temperature Resistant -30°C to 100°C | Plain Surface | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 468919
Alternatively Known As: Nitrile O-ring, Imperial O-ring, NBR sealing ring, Rubber O-ring, Machine component seal
Technical Specifications

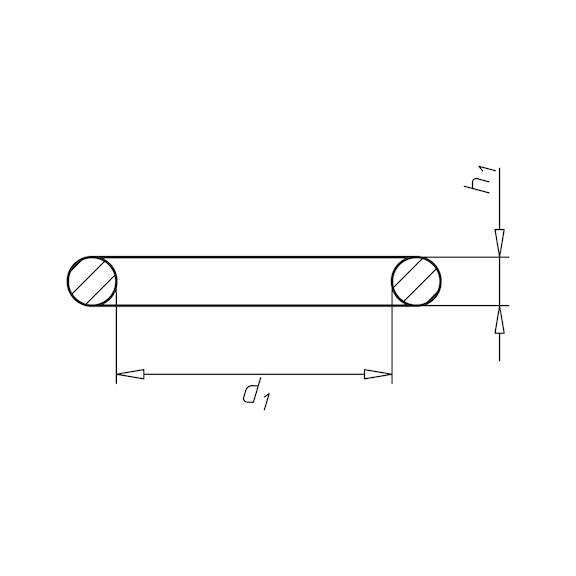

- Internal diameter: 9.19 mm
- Thickness: 2.62 mm
- Material: NBR (Nitrile Butadiene Rubber)
- Surface: Plain
- Shore A hardness: 70 +/- 5
- Temperature resistance: -30 to 100 °C
- Compliant with ISO 3601-1 standard
- RoHS-compliant
- Dimensions (H x L x W): 2.6mm x 9mm x 9mm
- Weight: 0.05 kg
Key Features
- Made from NBR (Nitrile Butadiene Rubber) with Shore A hardness of 70 +/- 5
- Temperature resistance from -30°C to +100°C
- Dimensional tolerances according to DIN ISO 3601-1 B industry standard
- Plain surface design
- Imperial design
Professional Installation Requirements
- Ensure removal of any contamination before installation; edges and lead-in chamfers must be deburred; use lubricated or greased O-ring for installation.
Applications
- Sealing moving and stationary machine components
- Suitable for use with mineral oils, grease, petrol, hot water, steam, compressed air, and weak acids
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable material reduces frequency of replacements and waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Imperial NBR 70 O-ring 25 PCS pack is available now for immediate purchase. Ideal for industrial sealing applications requiring durable and reliable O-rings.
