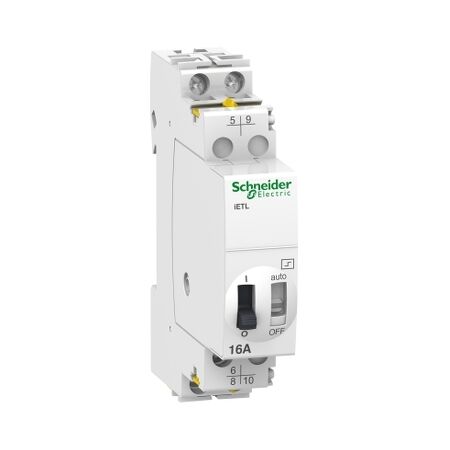

Impulse Relay 16A | 12VDC & 24VAC Control | DIN Rail Mount by Clipsal
Impulse relay with 16A rated current and dual control options of 12VDC and 24VAC—ideal for small commercial and residential applications. Built for reliable performance, with fixed mounting on 35mm DIN rail.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 415V AC 50/60Hz
- Control type: toggle/remote control
- Electrical durability: AC-21: 200,000 cycles, AC-22: 100,000 cycles
- IP Rating: IP20 conforming to IEC 60529
- Ambient air temperature for operation: -20 to 50 °C
- Noise level: 60 dB
- Pollution degree: 3
- Dimensions (H x L x W): 60mm x 84mm x 18mm
- Weight: 0.123 kg
Key Features
- 16A rated current with 12VDC and 24VAC control options.
- Compatible with Acti9 iTL range.
- Fixed mounting on 35 mm symmetrical DIN rail.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential applications requiring impulse relay control.
Standards & Compliance
- Complies with EN 669-2-2 and EN 669-1 standards.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 iETL iTL 16 Extension Relay is available now for immediate purchase. Ideal for small commercial and residential applications.
