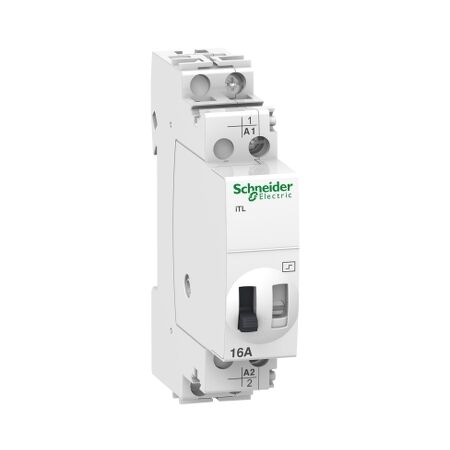

Impulse Relay 16A | 1P 1NO | 12VDC/24VAC | DIN Rail by Clipsal
Impulse relay with 16A current and 1P 1NO configuration—ideal for residential and small commercial applications. Built for remote and manual control, with easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Impulse relay, iTL, 1P, 1NO, 16A, coil 12 VDC, 24 VAC 50/60Hz
Brand: Clipsal
SKU: A9C30111
Alternatively Known As: Impulse Relay, Acti9 Relay, Clipsal Relay
Technical Specifications
- Control circuit voltage: 24V AC 50/60Hz, 12V DC
- Electrical durability: AC-21: 200,000 cycles, AC-22: 100,000 cycles
- IP Rating: IP20 (on opening), IP40 (in enclosure)
- Relative humidity: 95% at 55°C
- Ambient air temperature for operation: -20 to 50°C
- Noise level: 60 dB
- Pollution degree: 3
- Dimensions (H x L x W): 84mm x 60mm x 18mm
- Weight: 0.105 kg
Key Features
- Impulse relay with remote and manual control.
- Rated current of 16A and operational voltage of 250V AC.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments
- Commercial: Small commercial applications
Standards & Compliance
- Complies with EN 669-1 and EN 669-2-2 standards.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Impulse Relay is available now for immediate purchase. Ideal for residential and small commercial applications.
