Impulse Relay 16A | 250V AC | Changeover Function | IP40 by Clipsal
Impulse relay with 16A current and 250V AC voltage—ideal for residential and small commercial applications. Built for remote and manual control, with changeover functionality and IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

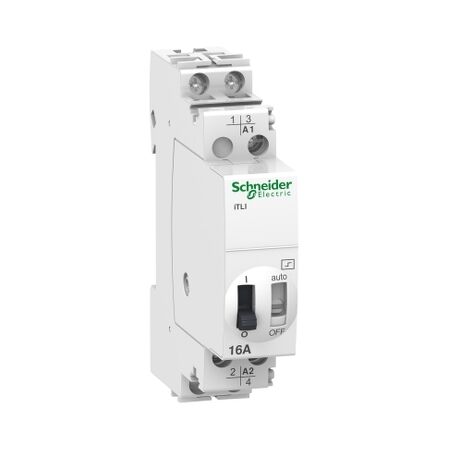

Product Name/Title: Acti9, Impulse relay, iTLI, 2P, 1NO+1NC, 16A, coil 24 VDC, 48 VAC 50/60Hz
Brand: Clipsal
SKU: A9C30215
Alternatively Known As: Impulse Relay, Changeover Relay, Acti9 Relay
Technical Specifications
- Rated current: 16A
- Rated operational voltage: 250V AC 50/60Hz
- Control type: Coil disconnection
- Control signal type: Impulse
- Electrical durability: AC-21: 200000 cycles, AC-22: 100000 cycles
- IP Rating: IP20 (on opening), IP40 (in enclosure)
- Ambient air temperature for operation: -20 to 50 °C
- Noise level: 60 dB
- Pollution degree: 3
- Dimensions (H x L x W): 84mm x 60mm x 18mm
- Weight: 0.111 kg
Key Features
- Impulse relay with changeover functionality.
- Rated current of 16A and operational voltage of 250V AC.
- Remote and manual control options available.
- Illuminated push-button control signal type.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments
- Commercial: Small commercial applications
Standards & Compliance
- Complies with EN 669-2-2 and EN 669-1 standards.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Impulse Relay iTLI 2P 1NO+1NC 16A is available now for immediate purchase. Ideal for residential and small commercial applications.
