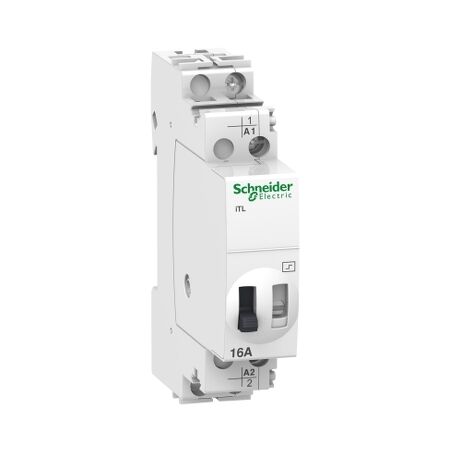

Impulse Relay 1P 1NO 16A | Remote & Manual Control | DIN Rail by Clipsal
Impulse relay with 1P 1NO configuration and 16A rated current—ideal for small commercial and residential applications. Built for versatile control, with remote and manual operation and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Impulse relay, iTL, 1P, 1NO, 16A, coil 130 VAC 50/60Hz- 48 VDC
Brand: Clipsal
SKU: A9C30311
Alternatively Known As: Impulse Relay, Acti9 Relay, Clipsal Relay
Technical Specifications
- Rated current: 16A
- Rated operational voltage: 250V AC 50/60Hz
- Control type: remote and manual control
- Control signal type: impulse
- Electrical durability: AC-21: 200000 cycles, AC-22: 100000 cycles
- IP degree of protection: IP20 (on opening), IP40 (in enclosure)
- Ambient air temperature for operation: -20 to 50 °C
- Noise level: 60 dB
- Pollution degree: 3
- Dimensions (H x L x W): 84mm x 60mm x 18mm
- Weight: 0.105 kg
Key Features
- Impulse relay with remote and manual control
- Illuminated push-button control
- DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential applications
Standards & Compliance
- Complies with EN 669-1 and EN 669-2-2 standards.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Impulse Relay is available now for immediate purchase. Ideal for small commercial and residential applications.
