Impulse Relay 2P 16A | 130 VAC/48 VDC | DIN Rail Mount by Clipsal
Impulse relay with 2P 16A capacity and 130 VAC/48 VDC control—ideal for small commercial and residential applications. Built for durability with 200,000 cycles, featuring remote and manual control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

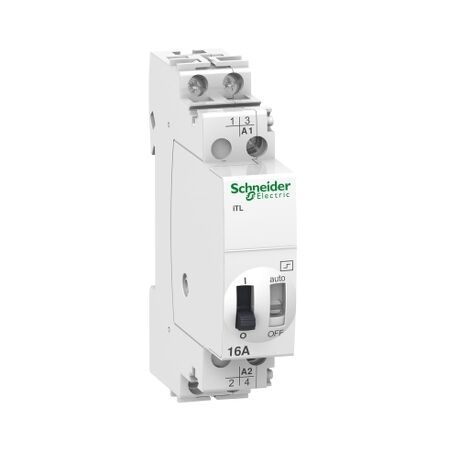

Product Name/Title: Acti9, Impulse relay, iTL, 2P, 2 NO, 16A, coil 130 VAC 50/60Hz- 48 VDC
Brand: Clipsal
SKU: A9C30312
Alternatively Known As: Impulse Relay, Acti9 Relay, Clipsal Relay
Technical Specifications
- Rated current: 16 A
- Rated operational voltage: 250 V AC 50/60 Hz
- Control circuit voltage: 130 V AC 50/60 Hz / 48 V DC
- IP Rating: IP20 / IP40
- Operating temperature: -20 to 50 °C
- Noise level: 60 dB
- Pollution degree: 3
- Dimensions (H x L x W): 84mm x 60mm x 18mm
- Weight: 0.112 kg
Key Features
- Impulse relay with remote and manual control
- Illuminated push-button control
- Fixed mounting on DIN rail
- High electrical durability with 200,000 cycles
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential applications
Standards & Compliance
- Complies with EN 669-1 and EN 669-2-2 standards.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Impulse Relay iTL 2P 16A is available now for immediate purchase. Ideal for small commercial and residential applications.
