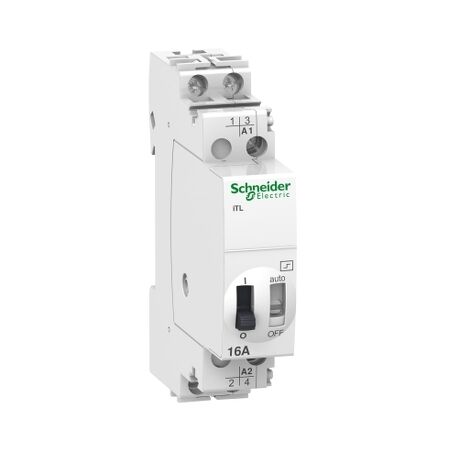

Impulse Relay 2P 16A | 24 VDC Coil | DIN Rail Mount by Clipsal
Impulse relay with 2P 16A capacity and 24 VDC coil—ideal for small commercial and residential applications. Built for remote and manual control, with easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Impulse relay, iTL, 2P, 2 NO, 16A, coil 24 VDC, 48 VAC 50/60Hz
Brand: Clipsal
SKU: A9C30212
Alternatively Known As: Impulse Relay, Acti9 Relay, Clipsal Relay
Technical Specifications
- Control signal type: impulse
- Remote control type: illuminated push-button 3 mA
- Electrical durability: AC-21: 200000 cycles, AC-22: 100000 cycles
- IP degree of protection: IP20 (on opening), IP40 (in enclosure)
- Ambient air temperature for operation: -20...50 °C
- Switching frequency: 100 switching operations/day, 5 switching operations/minute
- Total power losses: 1.2 W
- Dimensions (H x L x W): 84mm x 60mm x 18mm
- Weight: 0.11 kg
Key Features
- Impulse relay with remote and manual control.
- Rated current of 16A and operational voltage of 250V AC.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential applications requiring impulse relay control.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Complies with EN 669-1 and EN 669-2-2 standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Impulse Relay iTL 2P 16A is available now for immediate purchase. Ideal for small commercial and residential applications.
