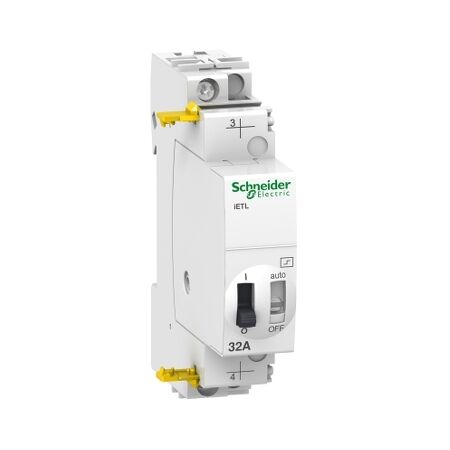

Impulse Relay Extension 32A | 110 VDC, 230-240VAC | DIN Rail Mount | IP20 by Clipsal
Impulse relay extension with 32A rated current and 110 VDC, 230-240VAC compatibility—ideal for small commercial and residential applications. Built for easy integration on a 35 mm DIN rail, with IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Extension, ETL iTL 32, 1P -1NO, 32A, coil 110 VDC, 230...240VAC 50/60Hz
Brand: Clipsal
SKU: A9C32836
Alternatively Known As: Impulse Relay Extension, Acti9 iTL Extension
Technical Specifications
- Rated operational voltage: 230...240VAC 50/60Hz, 110VDC.
- Electrical durability: AC-21: 50000 cycles, AC-22: 20000 cycles.
- Control signal type: impulse with illuminated push-button remote control.
- Noise level: 60 dB.
- Pollution degree: 3.
- Tropicalisation: 2 conforming to IEC 60068-1.
- Dimensions (H x L x W): 60mm x 84mm x 18mm
- Weight: 0.12 kg
Key Features
- Rated current of 32A with a control type of toggle/remote control.
- Compatible with iTL 32A and designed for fixed mounting on a 35 mm symmetrical DIN rail.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Small commercial and residential applications requiring impulse relay extensions.
Standards & Compliance
- Complies with EN 669-1 and EN 669-2-2 standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Extension ETL iTL 32A is available now for immediate purchase. Ideal for small commercial and residential applications.
