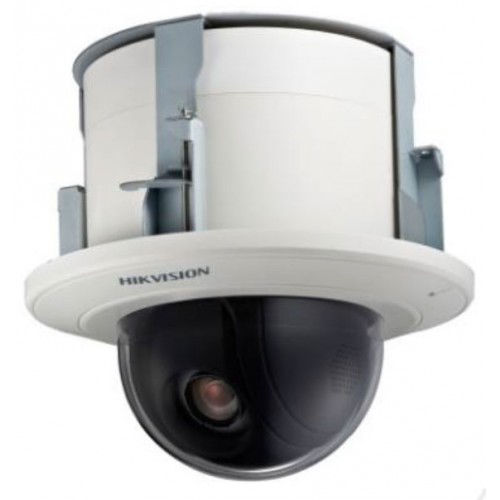

In-Ceiling Dome Camera 2MP 32X Hikvision
Hikvision in-ceiling dome camera features 2MP resolution and 32X zoom. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2MP 32x In-Ceiling Speed Dome, Hikvision DS-2DF5232X-AE3 Indoor PTZ Camera
Technical Specifications
- Image Sensor: 1/2.8-inch progressive scan CMOS
- Maximum Resolution: 1920 x 1080 pixels
- Optical Zoom: 32x
- Digital Zoom: 16x
- Lens: 4.8–153 mm motorised lens
- Minimum Illumination: 0.002 lux colour; 0.0002 lux black and white
- Field of View: 58.4° to 2.14° horizontal
- Pan Range: 360° endless
- Tilt Range: -5° to 90° with auto-flip
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Dynamic Range: 120 dB WDR
- Network Interface: 10/100 Mbps RJ45
- Storage: MicroSD, SDHC or SDXC up to 256 GB
- Power Supply: 24 VAC or Hi-PoE
- Maximum Power Consumption: 25 W
- Operating Temperature: -10°C to 50°C
- Audio: Line-level audio input and output
- Alarm I/O: 7 alarm inputs and 2 alarm outputs
- Dimensions (H x L x W): 239mm x 245.1mm x 245.1mm
- Weight: 3.4 kg
Key Features
- Recessed in-ceiling design for discreet indoor installations
- 32x optical zoom for detailed monitoring over large areas
- 2MP Full HD imaging at up to 1920 x 1080 resolution
- 360° endless pan and -5° to 90° tilt movement
- Deep-learning target classification for auto-tracking and perimeter protection
- H.265+ compression reduces bandwidth and storage requirements
- 120 dB WDR, 3D DNR, HLC and optical defog
- Supports Hi-PoE and 24 VAC power
- MicroSD recording support up to 256 GB
- Compatible with Hikvision, Pelco-P and Pelco-D control protocols
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical installer. The camera requires 24 VAC or Hi-PoE connection and recessed ceiling mounting, with structural support and cabling installed in accordance with applicable Australian requirements.
Applications
- Indoor CCTV and video surveillance systems
- Commercial buildings and office complexes
- Retail stores and shopping centres
- Transport facilities and public buildings
- Warehouses and industrial premises
- Large indoor areas requiring long-range PTZ coverage
Standards & Compliance
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
- For IP video transmission and interoperability: AS/NZS 62676.1.2:2020 and AS/NZS 62676.2.1:2020
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage energy requirements
- Long-life PTZ construction and replaceable storage media can reduce replacement and electronic waste
- Indoor installation avoids exposure-related deterioration and may extend service life
Warranty Information
Hikvision Australia offers a five-year warranty on eligible premium project-oriented PTZ camera series. Confirm DS-2DF5232X-AE3 eligibility and warranty conditions with the authorised Australian distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security and surveillance distributors, subject to distributor stock and product lifecycle status.
