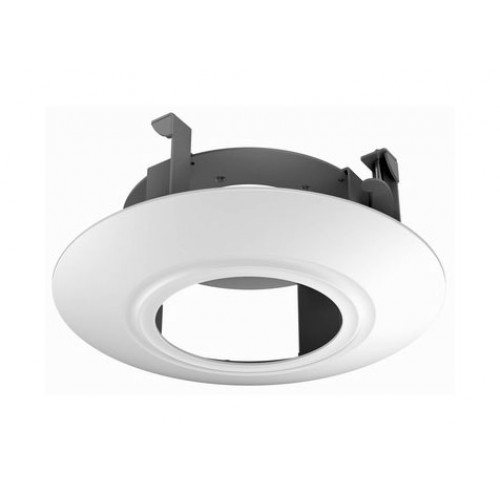

In-Ceiling Mount to Suit Dome Camera Hikvision
Hikvision in-ceiling mount is made to Suit dome cameras. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Recessed Ceiling Mount, In-Ceiling Dome Camera Bracket, Hikvision RCM-1 Ceiling Mount
Technical Specifications
- Model: RCM-1
- Material: Aluminium alloy with surface spray treatment
- Finish: Hikvision white
- Maximum Load Capacity: 4.5 kg
- Mounting Type: Recessed in-ceiling installation on a flat ceiling
- Compatible Cameras: Selected Hikvision dome cameras including DS-2CD51xx, DS-2CD71xx and ECI-D6xZ2 series
- Cable Management: Integrated design for convenient wiring
- Outdoor Use: Waterproof rubber sealing required for outdoor applications
- Ceiling Requirement: Ceiling must support more than three times the combined camera and mount weight
- Dimensions (H x L x W): 90mm x 210mm x 210mm
- Weight: 0.6 kg
Key Features
- Recesses a compatible dome camera into the ceiling for a discreet installation
- Aluminium alloy construction for a rigid, lightweight mounting solution
- Concealed cable routing supports a tidy CCTV installation
- Supports camera and mount loads up to 4.5 kg
- Designed for selected Hikvision network and analogue dome cameras
- Available in a Hikvision white finish
Professional Installation Requirements
- Installation should be carried out by a suitably qualified CCTV installer. Secure the bracket to a structurally suitable ceiling, provide a safety support where required, and follow the camera and mount installation instructions. Electrical and structured cabling work must comply with applicable Australian requirements.
Applications
- Commercial CCTV installations
- Residential security camera systems
- Office, retail and warehouse surveillance
- Recessed ceiling mounting of compatible Hikvision dome cameras
- Indoor surveillance installations requiring concealed camera wiring
Standards & Compliance
- AS/NZS 62676.4:2020 provides applicable guidance for the selection, planning, installation, commissioning and maintenance of CCTV systems; no separate product certification for the RCM-1 mount was identified.
Environmental Benefits
- Aluminium alloy construction is durable and recyclable at end of service life
- Recessed installation can help protect the camera and extend service life, reducing replacement waste
- Supports long-term use of compatible surveillance equipment rather than requiring a proprietary camera replacement
Warranty Information
Hikvision Australia documentation lists brackets as consumable accessories with a 12-month warranty, subject to the applicable sales agreement and shipment terms. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy-V6.0.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian CCTV and security-equipment distributors.
