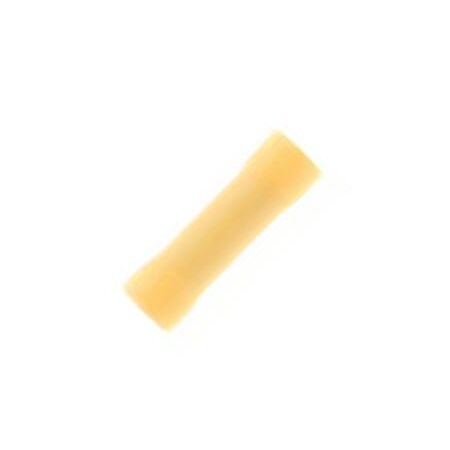

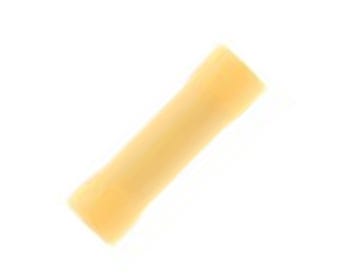

In Line Splice Connector | 300V Rated | Pre-Insulated | Yellow by Cabac
In line splice connector with 300V rating and pre-insulated design—ideal for electrical wiring and connectivity. Built for secure wire termination, with funnel entry for easy conductor insertion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: In Line Splice Yellow Dg
Brand: Cabac
SKU: ILS5.5DG
Alternatively Known As: Pre-Insulated Terminal, Electrical Wire Splice Connector, Yellow Inline Splice Terminal, DG Terminal Connector
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa (Quick Connect Range), 200 MPa (Except Quick Connect Range)
- Ductile Rating: 6% min (Quick Connect Range), 35% min (Except Quick Connect Range)
- Final Metal State: Annealed (Quick Connect Range), Fully Annealed (Except Quick Connect Range)
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating: Tin, 99.9% Tin Content, 2.5 microns thickness
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: Minimum 1.5kV
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
- Nominal Pull Out Force varies by wire size from 4.6 kg to 35.2 kg
- Dimensions (H x L x W): 5mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
- Long term electrical integrity
- Voltage rating 300V
- Full technical backup including QA
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- All terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure secure and reliable connections.
Applications
- Electrical wiring and connectivity in switchgear
- Contactors and terminal blocks
- General electrical installations requiring secure wire termination
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS 3169
- AS 4437
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- PVC insulation designed for long-term electrical integrity minimizing waste
Warranty Information
Warranty details available upon request; product backed by full technical support and quality assurance.
Available Now
The Cabac In Line Splice Yellow DG is available now for immediate purchase. Ideal for electrical wiring and connectivity applications requiring reliable and high-quality terminal connections.
