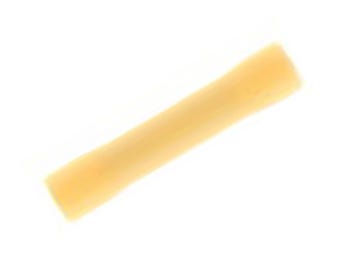

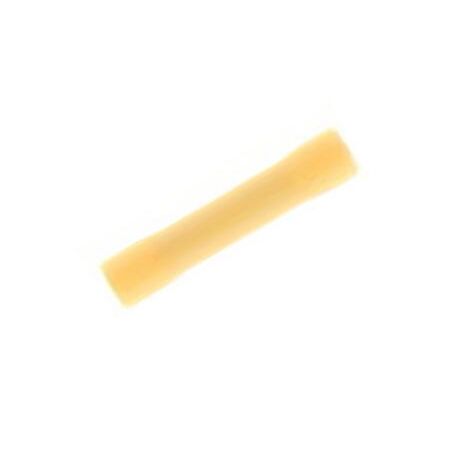

In Line Splice Connector | 600V Rated | Funnel Entry | Yellow by Cabac
In line splice connector with 600V rating and funnel entry—ideal for electrical wiring and connectivity. Built for secure wire termination, with high-quality pre-insulated design conforming to AS 3169 and AS 4437 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: In Line Splice Yellow
Brand: Cabac
SKU: ILS5.5
Alternatively Known As: Pre-Insulated Terminal, Electrical Wire Splice Connector, Inline Wire Connector, Yellow Electrical Terminal
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa (Quick Connect Range), 200 MPa (Except Quick Connect Range)
- Ductile Rating: 6% min (Quick Connect Range), 35% min (Except Quick Connect Range)
- Final Metal State: Annealed (Quick Connect Range), Fully Annealed (Except Quick Connect Range)
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% Tin Content, Plating Thickness 2.5 microns
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: Minimum 1.5kV
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Torque Recommendations: Metric 8.8 tensile grade hardware with specified torque values
- Nominal Pull Out Force varies by wire size from 4.6 kg to 35.2 kg
- Dimensions (H x L x W): 5mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
- Long term electrical integrity
- Voltage rating 600V
- Full technical backup including QA
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure secure and reliable connections.
Applications
- Electrical wiring and connectivity in switchgear
- Contactors and terminal blocks
- General electrical power connectivity requiring secure wire termination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Improved electrical integrity reduces energy loss
- PVC insulation is recyclable under proper waste management
Warranty Information
Warranty details available upon request from manufacturer; typically covers manufacturing defects.
Available Now
The Cabac In Line Splice Yellow pre-insulated terminal is available now for immediate purchase. Ideal for electrical wiring and power connectivity applications requiring reliable and safe wire termination.
