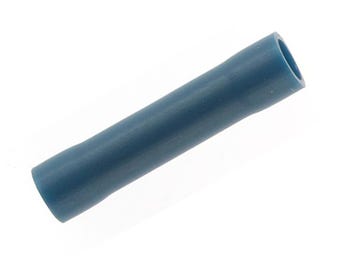

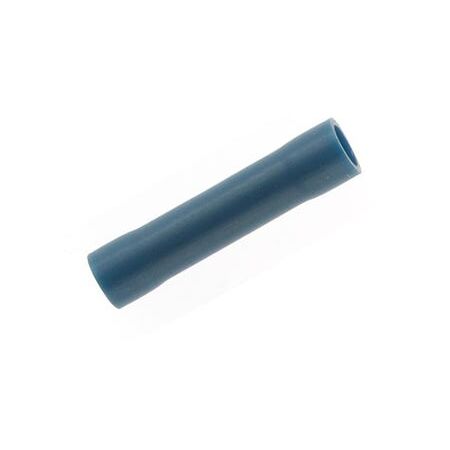

In Line Splice Connector | 600V Rating | Pre-Insulated | Blue DG by Cabac
In line splice connector with 600V voltage rating and pre-insulated design—ideal for electrical wiring and connectivity. Built for long-term electrical integrity, with compliance to AS 3169 and AS4437 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: In Line Splice Blue Dg
Brand: Cabac
SKU: ILS2DG
Alternatively Known As: Pre-Insulated Terminal, Inline Splice Connector, Electrical Wire Connector, Blue DG Terminal
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa (Quick Connect Range)
- Ductile Rating: 6% min (Quick Connect Range)
- Final Metal State: Annealed (Quick Connect Range)
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Conductive Material (Except Quick Connect Range): Copper 99.9% Pure
- Tensile Strength: 200 MPa (Except Quick Connect Range)
- Ductile Rating: 35% min (Except Quick Connect Range)
- Final Metal State: Fully Annealed (Except Quick Connect Range)
- Oxygen Content: 50ppm max
- Total Conductivity: 99.5% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Electroplating Material: Tin
- Tin Content: 99.9%
- Other Metals: Lead + Antimony
- Plating Thickness: 2.5 microns
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Dimensions (H x L x W): 5mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimising substandard crimps
- Long term electrical integrity
- Voltage rating 600V
- Full technical back up including QA
- Conforms to AS 3169 and AS4437
Professional Installation Requirements
- Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type. Professional installation by a qualified electrician is recommended.
Applications
- Electrical wiring and connectivity in switchgear
- Contactors and terminal blocks
- General electrical and power connectivity applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Ensures secure electrical connections reducing energy loss
Warranty Information
Warranty details available upon request from manufacturer; typically covers manufacturing defects.
Available Now
The Cabac In Line Splice Blue DG Pre-Insulated Terminal is available now for immediate purchase. Ideal for electrical wiring and power connectivity applications.
