Trade Discount 17%

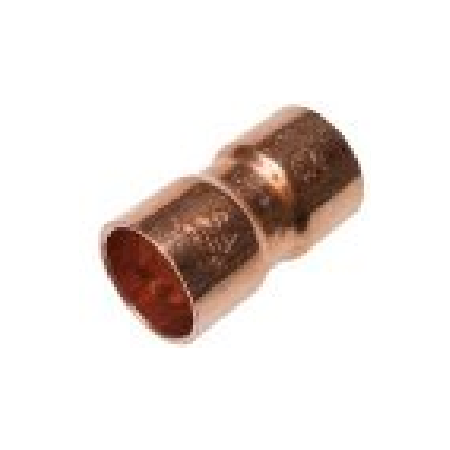

1 1/8 OD X 28mm ID Inch/Metric Reducer | CuFe2P Copper Alloy | 130 Bar Pressure Rating | by Aspen Pumps
The 1 1/8 OD X 28mm ID inch/metric reducer is crafted from CuFe2P copper iron alloy, ensuring high corrosion resistance and durability. With a pressure rating of 130 bar and a temperature tolerance of up to 150°C, this fitting is perfect for high-pressure refrigeration systems using R744 refrigerant. Ideal for industrial and commercial HVAC installations, it guarantees reliable connections between imperial and metric systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 1/8 OD X 28mm ID Inch/Metric Reducer | CuFe2P Copper Alloy | 130 Bar Pressure Rating | by Aspen Pumps
Brand: Aspen Pumps
SKU: 128-129243-IM11828
Alternatively Known As: Imperial to Metric Copper Reducer, High Pressure Copper Fitting, R744 Copper Connector
Technical Specifications
- Material: CuFe2P Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B280, AS5149.2
- Joining Method: Traditional Brazed Joining
- Magnetic Identification for easy verification
- Certified to TÜV standards
- Dimensions (H x L x W): 28mm x 40mm x 28mm
- Weight: 0.1 kg
Key Features
- Made from CuFe2P copper iron alloy for high corrosion resistance
- Certified to ASTM B280 and AS5149.2 standards
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining with magnetic identification
- Certified to TÜV for quality assurance
Professional Installation Requirements
- Installation must be performed by a qualified refrigeration technician experienced with high pressure brazed copper fittings to ensure safety and compliance.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial and commercial HVAC installations
- Systems requiring reliable imperial to metric copper fitting connections
Standards & Compliance
- AS/NZS 5149.2 – Refrigeration systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Supports use of environmentally friendly R744 refrigerant with low global warming potential
- Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
Available for immediate purchase, ideal for high pressure refrigeration and HVAC applications requiring reliable imperial to metric copper connections.
